| Part Number | DAC101C081CISDX | DAC121C081CISDX | DAC101C081CISD |
|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Obsolete | Obsolete | Obsolete |
| Number of Bits | 10 | 12 | 10 |
| Number of D/A Converters | 1 | 1 | 1 |
| Settling Time | 6µs | 8.5µs | 6µs |
| Output Type | Voltage - Buffered | Voltage - Buffered | Voltage - Buffered |
| Differential Output | No | No | No |
| Data Interface | I²C | I²C | I²C |
| Reference Type | Supply | Supply | Supply |
| Voltage - Supply, Analog | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V |
| Voltage - Supply, Digital | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V |
| INL/DNL (LSB) | +0.6/-0.4, +0.12/-0.04 | +2.2/-1.5, +0.18/-0.12 | +0.6/-0.4, +0.12/-0.04 |
| Architecture | String DAC | String DAC | String DAC |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |

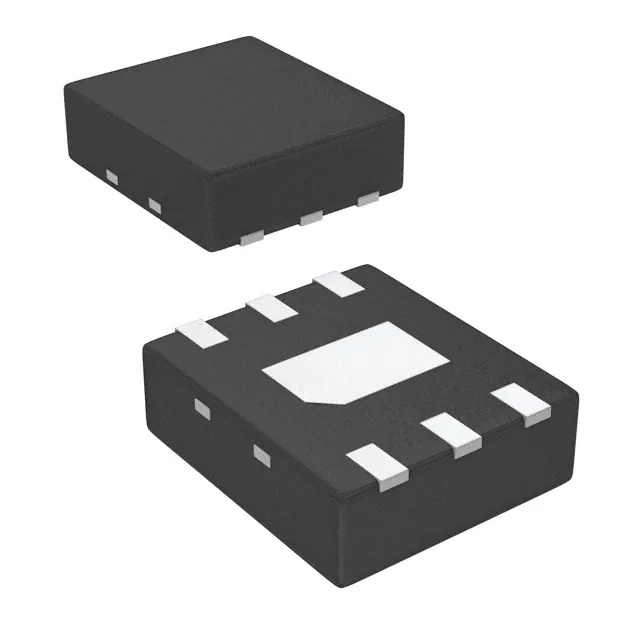

| Package / Case | 6-WDFN Exposed Pad | 6-WDFN Exposed Pad | 6-WDFN Exposed Pad |
| Supplier Device Package | 6-WSON (2.2x2.5) | 6-WSON (2.2x2.5) | 6-WSON (2.2x2.5) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
