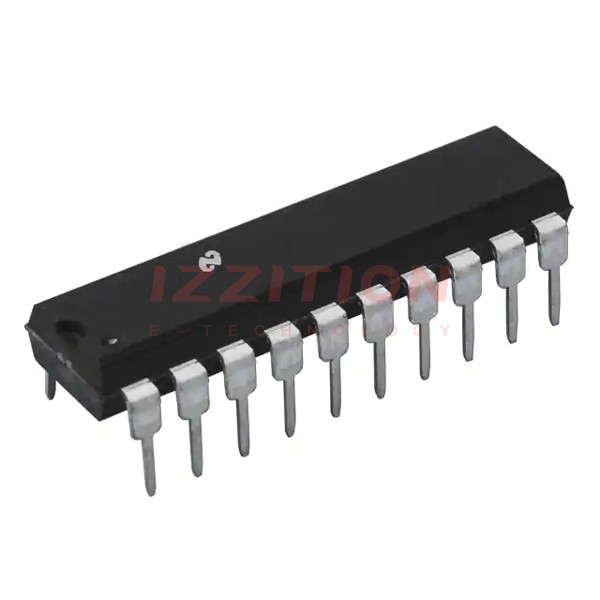

| Part Number | DAC0830LCN | DAC0832LCN | DAC0800LCN |
|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Obsolete | Obsolete | Obsolete |
| Number of Bits | 8 | 8 | 8 |
| Number of D/A Converters | 1 | 1 | 1 |
| Settling Time | 1µs (Typ) | 1µs (Typ) | 150µs |
| Output Type | Current - Unbuffered | Current - Unbuffered | Current - Unbuffered |
| Differential Output | Yes | Yes | Yes |
| Data Interface | Parallel | Parallel | Parallel |
| Reference Type | External | External | External |
| Voltage - Supply, Analog | 5V ~ 15V | 5V ~ 15V | ±4.5V ~ 18V |
| Voltage - Supply, Digital | 5V ~ 15V | 5V ~ 15V | - |
| INL/DNL (LSB) | - | - | - |
| Architecture | Multiplying DAC | Multiplying DAC | Multiplying DAC |
| Operating Temperature | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C |
| Package / Case | 20-DIP (0.300", 7.62mm) | 20-DIP (0.300", 7.62mm) | 16-DIP (0.300", 7.62mm) |
| Supplier Device Package | 20-PDIP | 20-PDIP | 16-PDIP |
| Mounting Type | Through Hole | Through Hole | Through Hole |
