Please send RFQ , we will respond immediately.

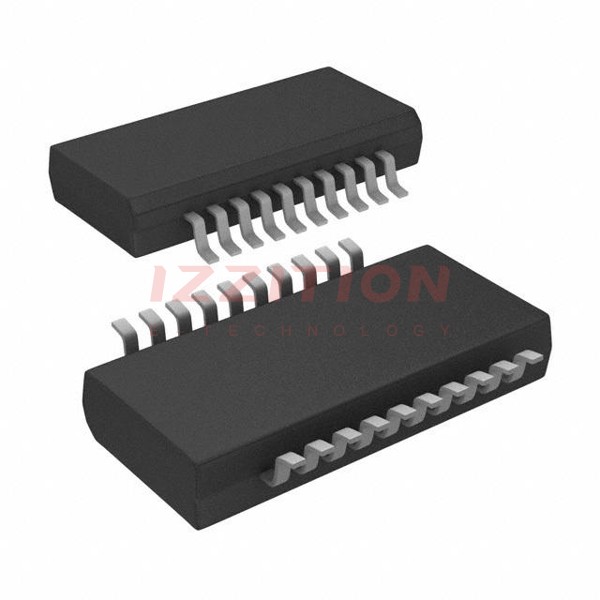

| Part Number | CY74FCT2245CTQCT | CY74FCT2245TQCT | CY74FCT245CTQCT | CY74FCT2240CTQCT | CY74FCT2244CTQCT | CY74FCT2245ATQCT | CY74FCT2245CTQC |
|---|---|---|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Cypress Semiconductor Corp |
| Product Status | Active | Active | Active | Active | Active | Active | Obsolete |
| Logic Type | Transceiver, Non-Inverting | Transceiver, Non-Inverting | Transceiver, Non-Inverting | Buffer, Inverting | Buffer, Non-Inverting | Transceiver, Non-Inverting | Transceiver, Non-Inverting |
| Number of Elements | 1 | 1 | 1 | 2 | 2 | 1 | 1 |
| Number of Bits per Element | 8 | 8 | 8 | 4 | 4 | 8 | 8 |
| Input Type | - | - | - | - | - | - | - |
| Output Type | 3-State | 3-State | 3-State | 3-State | 3-State | 3-State | 3-State |
| Current - Output High, Low | 15mA, 12mA | 15mA, 12mA | 32mA, 64mA | 15mA, 12mA | 15mA, 12mA | 15mA, 12mA | 15mA, 12mA |
| Voltage - Supply | 4.75V ~ 5.25V | 4.75V ~ 5.25V | 4.75V ~ 5.25V | 4.75V ~ 5.25V | 4.75V ~ 5.25V | 4.75V ~ 5.25V | 4.75V ~ 5.25V |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 20-SSOP (0.154", 3.90mm Width) | 20-SSOP (0.154", 3.90mm Width) | 20-SSOP (0.154", 3.90mm Width) | 20-SSOP (0.154", 3.90mm Width) | 20-SSOP (0.154", 3.90mm Width) | 20-SSOP (0.154", 3.90mm Width) | 20-SSOP (0.154", 3.90mm Width) |
| Supplier Device Package | 20-SSOP | 20-SSOP | 20-SSOP | 20-SSOP | 20-SSOP | 20-SSOP | 20-SSOP |
