Please send RFQ , we will respond immediately.

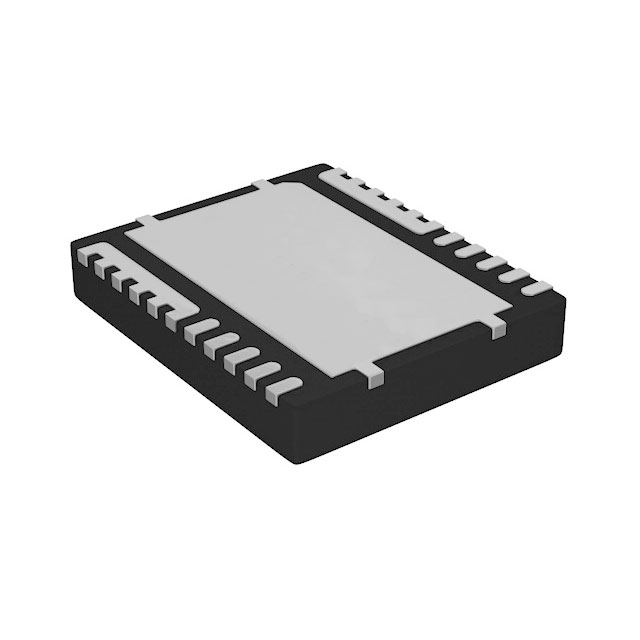

| Part Number | CSD95490Q5MCT | CSD95491Q5MCT | CSD95490Q5MC |
|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Active |
| Output Configuration | Half Bridge (3) | Half Bridge (3) | Half Bridge (3) |
| Applications | Synchronous Buck Converters | Synchronous Buck Converters | Synchronous Buck Converters |
| Interface | PWM | PWM | PWM |
| Load Type | Inductive, Capacitive | Inductive, Capacitive | Inductive, Capacitive |
| Technology | Power MOSFET | Power MOSFET | Power MOSFET |
| Rds On (Typ) | - | - | - |
| Current - Output / Channel | 75A | 60A | 75A |
| Current - Peak Output | 105A | 90A | 105A |
| Voltage - Supply | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 4.5V ~ 5.5V |
| Voltage - Load | 4.5V ~ 16V | 4.5V ~ 16V | 4.5V ~ 16V |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |
| Features | Bootstrap Circuit | Bootstrap Circuit | Bootstrap Circuit |
| Fault Protection | Shoot-Through | Shoot-Through | Shoot-Through |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 12-PowerTFDFN | 12-PowerTFDFN | 12-PowerTFDFN |
| Supplier Device Package | 12-VSON-CLIP (5x6) | 12-VSON-CLIP (5x6) | 12-VSON-CLIP (5x6) |
