Please send RFQ , we will respond immediately.

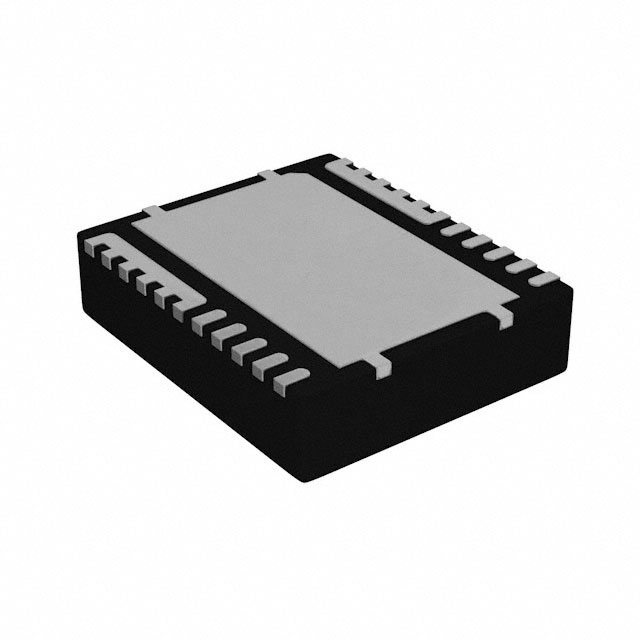

| Part Number | CSD95372BQ5M | CSD95378BQ5M | CSD95372BQ5MC | CSD95372BQ5MT | CSD95373BQ5M | CSD95372AQ5M |
|---|---|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Active | Active | Active | Active |
| Output Configuration | Half Bridge | Half Bridge | Half Bridge | Half Bridge | Half Bridge | Half Bridge |
| Applications | Synchronous Buck Converters | Synchronous Buck Converters | Synchronous Buck Converters | Synchronous Buck Converters | Synchronous Buck Converters | Synchronous Buck Converters |
| Interface | PWM | PWM | PWM | PWM | PWM | PWM |
| Load Type | Inductive | Inductive | Inductive | Inductive | Inductive | Inductive |
| Technology | Power MOSFET | Power MOSFET | Power MOSFET | Power MOSFET | Power MOSFET | Power MOSFET |
| Rds On (Typ) | - | - | - | - | - | - |
| Current - Output / Channel | 60A | 60A | 60A | 60A | 45A | 60A |
| Current - Peak Output | 90A | 90A | 90A | 90A | 67A | 90A |
| Voltage - Supply | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 4.5V ~ 5.5V |
| Voltage - Load | 4.5V ~ 16V | 4.5V ~ 16V | 4.5V ~ 16V | 4.5V ~ 16V | 4.5V ~ 16V | 4.5V ~ 16V |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Features | Bootstrap Circuit, Status Flag | Bootstrap Circuit, Status Flag | Bootstrap Circuit, Status Flag | Bootstrap Circuit, Status Flag | Bootstrap Circuit, Status Flag | Bootstrap Circuit, Status Flag |
| Fault Protection | Current Limiting, Over Temperature, Shoot-Through, Short Circuit, UVLO | Current Limiting, Over Temperature, Shoot-Through, Short Circuit, UVLO | Current Limiting, Over Temperature, Shoot-Through, Short Circuit, UVLO | Current Limiting, Over Temperature, Shoot-Through, Short Circuit, UVLO | Current Limiting, Over Temperature, Shoot-Through, Short Circuit, UVLO | Over Temperature, Shoot-Through, UVLO |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 12-Power LFDFN | 12-Power LFDFN | 12-PowerTFDFN | 12-Power LFDFN | 12-Power LFDFN | 12-PowerLFDFN |
| Supplier Device Package | 12-LSON (5x6) | 12-LSON (5x6) | 12-VSON (5x6) | 12-LSON (5x6) | 12-LSON (5x6) | 12-LSON-CLIP (5x6) |
