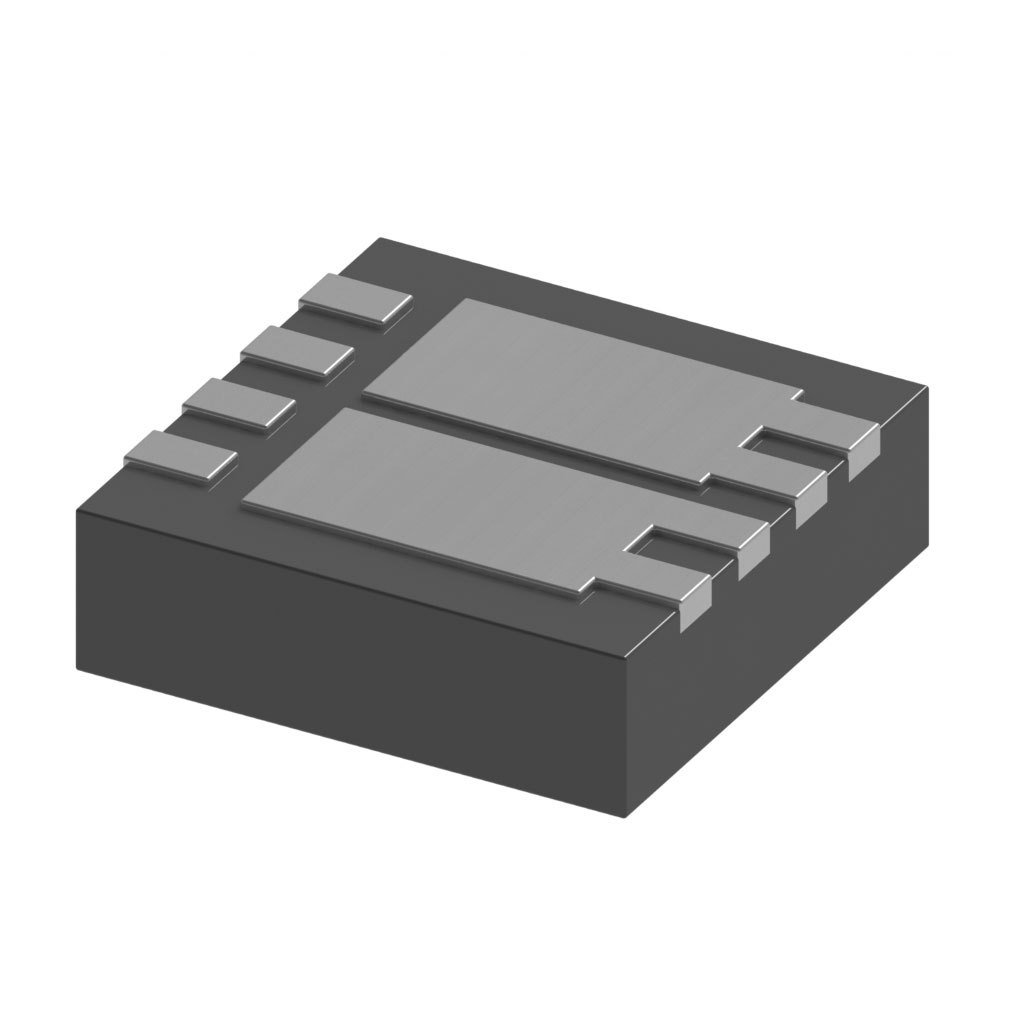

| Part Number | CSD87503Q3ET | CSD87503Q3E |
|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments |
| Product Status | Active | Active |
| FET Type | 2 N-Channel (Dual) Common Source | 2 N-Channel (Dual) Common Source |
| FET Feature | Standard | Standard |
| Drain to Source Voltage (Vdss) | 30V | 30V |
| Current - Continuous Drain (Id) @ 25°C | 10A (Ta) | 10A (Ta) |
| Rds On (Max) @ Id, Vgs | - | 13.5mOhm @ 6A, 10V |
| Vgs(th) (Max) @ Id | 2.1V @ 250µA | 2.1V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 17.4nC @ 4.5V | 17.4nC @ 4.5V |
| Input Capacitance (Ciss) (Max) @ Vds | 1020pF @ 15V | 1020pF @ 15V |
| Power - Max | 15.6W | 15.6W |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 8-PowerVDFN | 8-PowerVDFN |
| Supplier Device Package | 8-VSON (3.3x3.3) | 8-VSON (3.3x3.3) |
