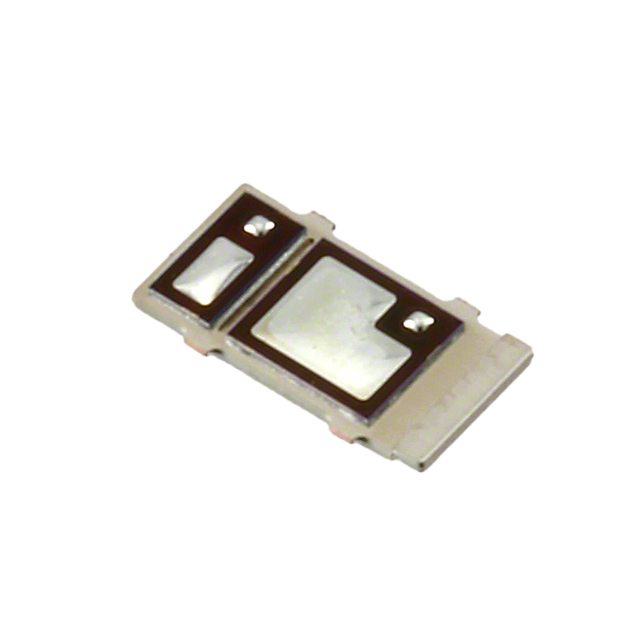

| Part Number | CSD87384MT | CSD87384M |
|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments |
| Product Status | Active | Active |
| FET Type | 2 N-Channel (Half Bridge) | 2 N-Channel (Half Bridge) |
| FET Feature | Logic Level Gate | Logic Level Gate |
| Drain to Source Voltage (Vdss) | 30V | 30V |
| Current - Continuous Drain (Id) @ 25°C | 30A | 30A |
| Rds On (Max) @ Id, Vgs | 7.7mOhm @ 25A, 8V | 7.7mOhm @ 25A, 8V |
| Vgs(th) (Max) @ Id | 1.9V @ 250µA | 1.9V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 9.2nC @ 4.5V | 9.2nC @ 4.5V |
| Input Capacitance (Ciss) (Max) @ Vds | 1150pF @ 15V | 1150pF @ 15V |
| Power - Max | 8W | 8W |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 5-LGA | 5-LGA |
| Supplier Device Package | 5-PTAB (5x3.5) | 5-PTAB (5x3.5) |
