Please send RFQ , we will respond immediately.

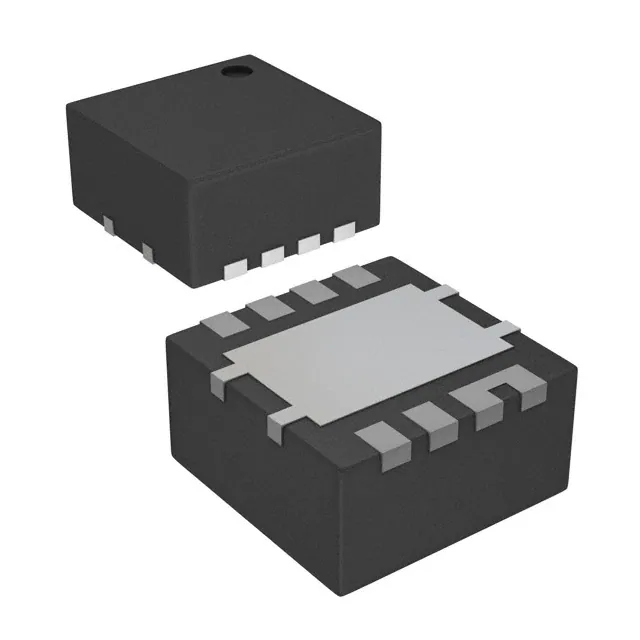

| Part Number | CSD87351Q5D | CSD87352Q5D | CSD87353Q5D | CSD87355Q5D | CSD87351ZQ5D | CSD87350Q5D |
|---|---|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Active | Active | Active | Active |
| FET Type | 2 N-Channel (Dual) | 2 N-Channel (Dual) | 2 N-Channel (Half Bridge) | 2 N-Channel (Dual) Asymmetrical | 2 N-Channel (Dual) Asymmetrical | 2 N-Channel (Dual) |
| FET Feature | Logic Level Gate | Logic Level Gate | Logic Level Gate | Standard | Logic Level Gate | Logic Level Gate |
| Drain to Source Voltage (Vdss) | 30V | 30V | 30V | 30V | 30V | 30V |
| Current - Continuous Drain (Id) @ 25°C | 32A | 25A | 40A | - | 32A | 40A |
| Rds On (Max) @ Id, Vgs | 7.6mOhm @ 20A, 8V | - | - | - | - | 5.9mOhm @ 20A, 8V |
| Vgs(th) (Max) @ Id | 2.1V @ 250µA | 1.15V @ 250µA | 2.1V @ 250µA | 1.9V @ 250µA | 2.1V @ 250µA | 2.1V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 7.7nC @ 4.5V | 12.5nC @ 4.5V | 19nC @ 4.5V | 13.7nC @ 4.5V | 7.7nC @ 4.5V | 10.9nC @ 4.5V |
| Input Capacitance (Ciss) (Max) @ Vds | 1255pF @ 15V | 1800pF @ 15V | 3190pF @ 15V | 1860pF @ 15V | 1255pF @ 15V | 1770pF @ 15V |
| Power - Max | 12W | 8.5W | 12W | 12W | 12W | 12W |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 8-PowerLDFN | 8-PowerLDFN | 8-PowerLDFN | 8-PowerLDFN | 8-PowerLDFN | 8-PowerLDFN |
| Supplier Device Package | 8-LSON (5x6) | 8-LSON (5x6) | 8-LSON (5x6) | 8-LSON (5x6) | 8-LSON (5x6) | 8-LSON (5x6) |
