Please send RFQ , we will respond immediately.

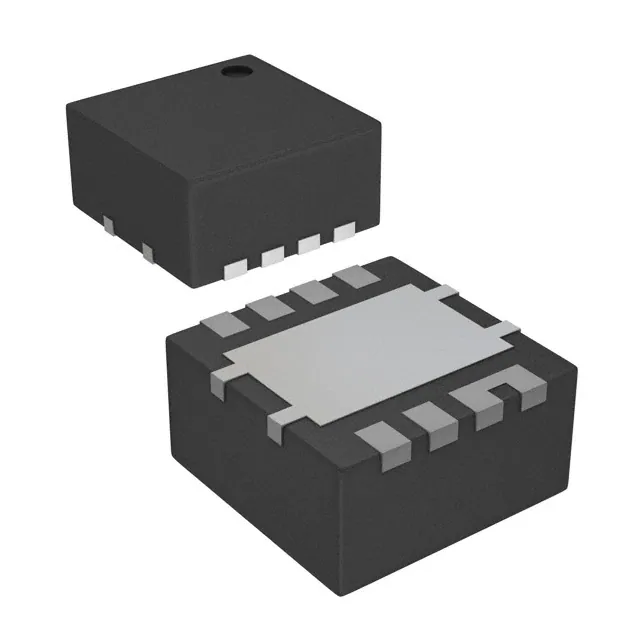

| Part Number | CSD87331Q3D | CSD87333Q3D | CSD87335Q3D | CSD87334Q3D | CSD87330Q3D |
|---|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Active | Active | Active |
| FET Type | 2 N-Channel (Half Bridge) | 2 N-Channel (Dual) Asymmetrical | 2 N-Channel (Dual) Asymmetrical | 2 N-Channel (Dual) Asymmetrical | 2 N-Channel (Half Bridge) |
| FET Feature | Standard | Logic Level Gate, 5V Drive | Standard | Logic Level Gate | Logic Level Gate |
| Drain to Source Voltage (Vdss) | 30V | 30V | 30V | 30V | 30V |
| Current - Continuous Drain (Id) @ 25°C | 15A | 15A | - | 20A | 20A |
| Rds On (Max) @ Id, Vgs | - | 14.3mOhm @ 4A, 8V | - | 6mOhm @ 12A, 8V | - |
| Vgs(th) (Max) @ Id | 2.1V, 1.2V @ 250µA | 1.2V @ 250µA | 1.9V @ 250µA | 1.2V @ 250µA | 2.1V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 3.2nC @ 4.5V | 4.6nC @ 4.5V | 7.4nC @ 4.5V | 8.3nC @ 4.5V | 5.8nC @ 4.5V |
| Input Capacitance (Ciss) (Max) @ Vds | 518pF @ 15V | 662pF @ 15V | 1050pF @ 15V | 1260pF @ 15V | 900pF @ 15V |
| Power - Max | 6W | 6W | 6W | 6W | 6W |
| Operating Temperature | -55°C ~ 150°C (TJ) | 125°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 8-PowerLDFN | 8-PowerTDFN | 8-PowerLDFN | 8-PowerTDFN | 8-PowerLDFN |
| Supplier Device Package | 8-LSON (5x6) | 8-VSON (3.3x3.3) | 8-LSON (3.3x3.3) | 8-VSON (3.3x3.3) | 8-LSON (3.3x3.3) |
