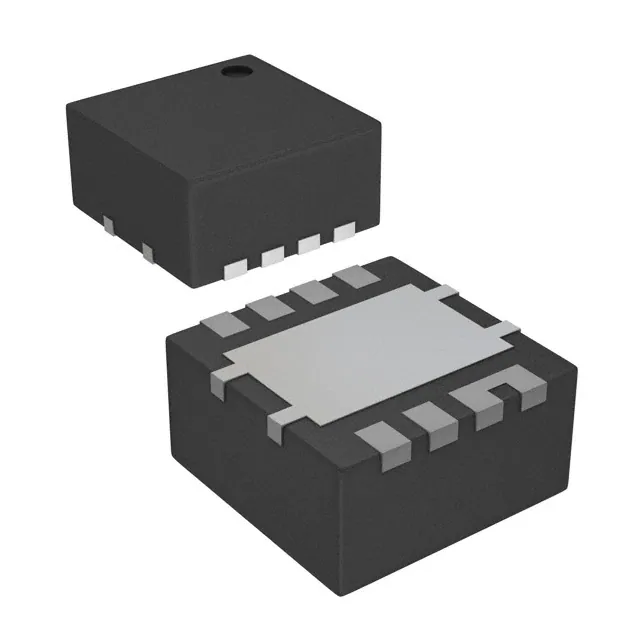

| Part Number | CSD86336Q3D | CSD86336Q3DT | CSD86330Q3D |
|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Active |
| FET Type | 2 N-Channel (Half Bridge) | 2 N-Channel (Half Bridge) | 2 N-Channel (Half Bridge) |
| FET Feature | Logic Level Gate, 5V Drive | Logic Level Gate, 5V Drive | Logic Level Gate |
| Drain to Source Voltage (Vdss) | 25V | 25V | 25V |
| Current - Continuous Drain (Id) @ 25°C | 20A (Ta) | 20A (Ta) | 20A |
| Rds On (Max) @ Id, Vgs | 9.1mOhm @ 20A, 5V, 3.4mOhm @ 20A, 5V | 9.1mOhm @ 20A, 5V, 3.4mOhm @ 20A, 5V | 9.6mOhm @ 14A, 8V |
| Vgs(th) (Max) @ Id | 1.9V @ 250µA, 1.6V @ 250µA | 1.9V @ 250µA, 1.6V @ 250µA | 2.1V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 3.8nC @ 45V, 7.4nC @ 45V | 3.8nC @ 45V, 7.4nC @ 45V | 6.2nC @ 4.5V |
| Input Capacitance (Ciss) (Max) @ Vds | 494pF @ 12.5V, 970pF @ 12.5V | 494pF @ 12.5V, 970pF @ 12.5V | 920pF @ 12.5V |
| Power - Max | 6W | 6W | 6W |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 8-PowerTDFN | 8-PowerTDFN | 8-PowerLDFN |
| Supplier Device Package | 8-VSON (3.3x3.3) | 8-VSON (3.3x3.3) | 8-LSON (3.3x3.3) |
