Please send RFQ , we will respond immediately.
| Part Number | CSD85301Q2 | CSD85301Q2T |
|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments |
| Product Status | Active | Active |
| FET Type | 2 N-Channel (Dual) | 2 N-Channel (Dual) |
| FET Feature | Logic Level Gate, 5V Drive | Logic Level Gate, 5V Drive |
| Drain to Source Voltage (Vdss) | 20V | 20V |
| Current - Continuous Drain (Id) @ 25°C | 5A | 5A |
| Rds On (Max) @ Id, Vgs | 27mOhm @ 5A, 4.5V | 27mOhm @ 5A, 4.5V |
| Vgs(th) (Max) @ Id | 1.2V @ 250µA | 1.2V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 5.4nC @ 4.5V | 5.4nC @ 4.5V |
| Input Capacitance (Ciss) (Max) @ Vds | 469pF @ 10V | 469pF @ 10V |
| Power - Max | 2.3W | 2.3W |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |

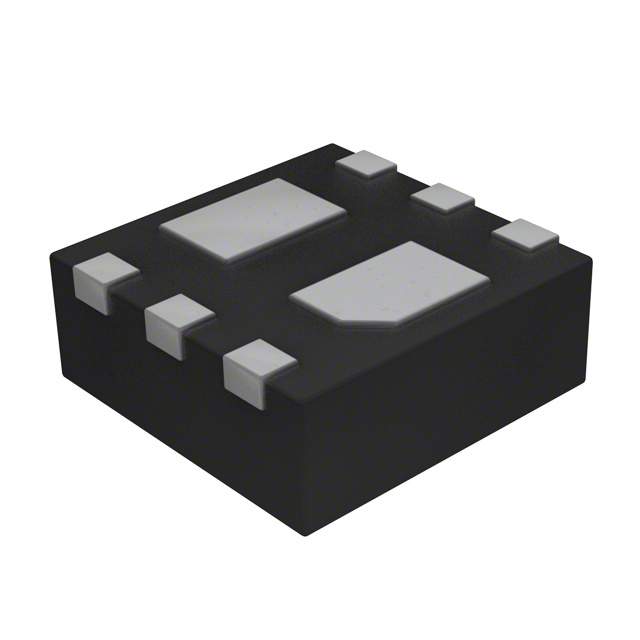

| Package / Case | 6-WDFN Exposed Pad | 6-WDFN Exposed Pad |
| Supplier Device Package | 6-WSON (2x2) | 6-WSON (2x2) |
