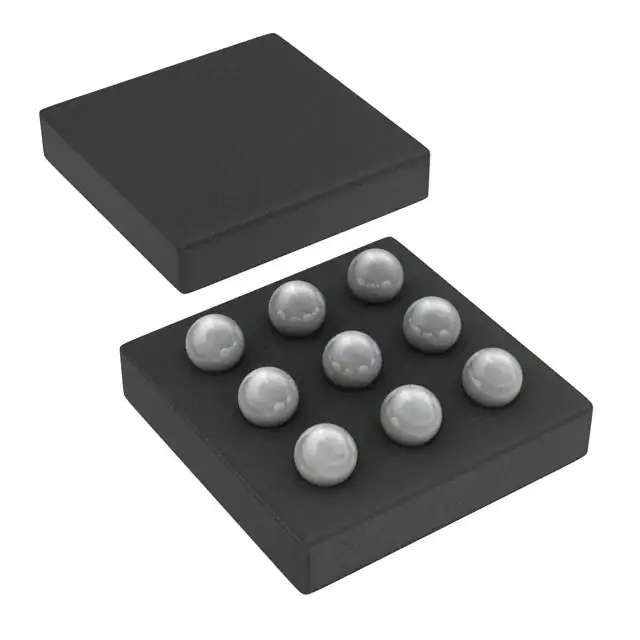

| Part Number | CSD75207W15 | CSD75204W15 |
|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments |
| Product Status | Active | Obsolete |
| FET Type | 2 P-Channel (Dual) Common Source | 2 P-Channel (Dual) |
| FET Feature | Logic Level Gate | Logic Level Gate |
| Drain to Source Voltage (Vdss) | - | - |
| Current - Continuous Drain (Id) @ 25°C | 3.9A | 3A |
| Rds On (Max) @ Id, Vgs | 162mOhm @ 1A, 1.8V | - |
| Vgs(th) (Max) @ Id | 1.1V @ 250µA | 900mV @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 3.7nC @ 4.5V | 3.9nC @ 4.5V |
| Input Capacitance (Ciss) (Max) @ Vds | 595pF @ 10V | 410pF @ 10V |
| Power - Max | 700mW | 700mW |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 9-UFBGA, DSBGA | 9-UFBGA, DSBGA |
| Supplier Device Package | 9-DSBGA | 9-DSBGA |
