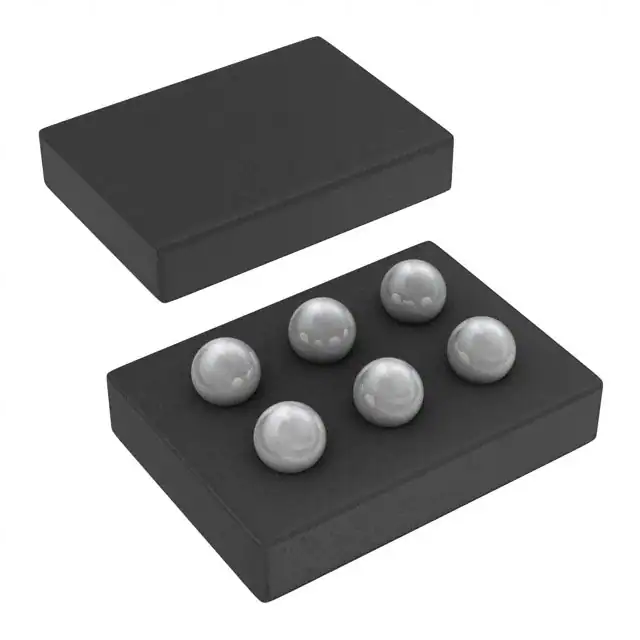

| Part Number | CSD75205W1015 | CSD75208W1015 |
|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments |
| Product Status | Obsolete | Active |
| FET Type | 2 P-Channel (Dual) | 2 P-Channel (Dual) Common Source |
| FET Feature | Logic Level Gate | Logic Level Gate |
| Drain to Source Voltage (Vdss) | 20V | 20V |
| Current - Continuous Drain (Id) @ 25°C | 1.2A | 1.6A |
| Rds On (Max) @ Id, Vgs | 120mOhm @ 1A, 4.5V | 68mOhm @ 1A, 4.5V |
| Vgs(th) (Max) @ Id | 850mV @ 250µA | 1.1V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 2.2nC @ 4.5V | 2.5nC @ 4.5V |
| Input Capacitance (Ciss) (Max) @ Vds | 265pF @ 10V | 410pF @ 10V |
| Power - Max | 750mW | 750mW |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 6-UFBGA, DSBGA | 6-UFBGA, DSBGA |
| Supplier Device Package | 6-DSBGA (1x1.5) | 6-DSBGA (1x1.5) |
