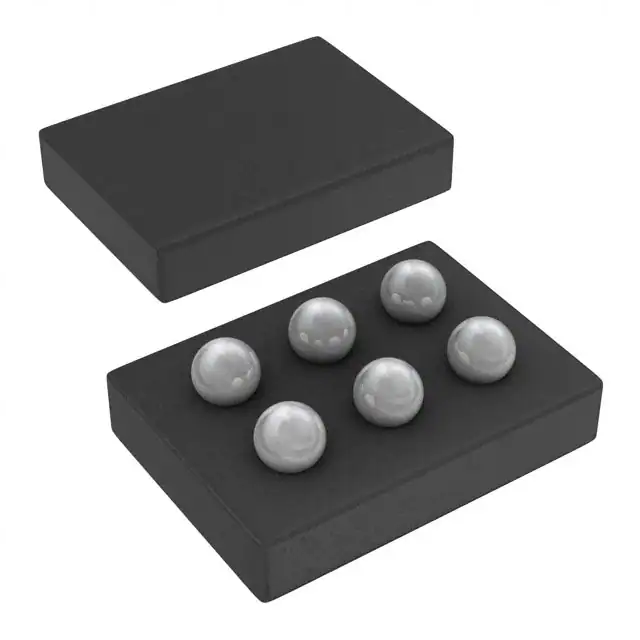

| Part Number | CSD25303W1015 | CSD25304W1015 | CSD25301W1015 |
|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Obsolete | Active | Obsolete |
| FET Type | P-Channel | P-Channel | P-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 20 V | 20 V | 20 V |
| Current - Continuous Drain (Id) @ 25°C | 3A (Tc) | 3A (Ta) | 2.2A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 1.8V, 4.5V | 1.8V, 4.5V | 1.5V, 4.5V |
| Rds On (Max) @ Id, Vgs | 58mOhm @ 1.5A, 4.5V | 32.5mOhm @ 1.5A, 4.5V | 75mOhm @ 1A, 4.5V |
| Vgs(th) (Max) @ Id | 1V @ 250µA | 1.15V @ 250µA | 1V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 4.3 nC @ 4.5 V | 4.4 nC @ 4.5 V | 2.5 nC @ 4.5 V |
| Vgs (Max) | ±8V | ±8V | ±8V |
| Input Capacitance (Ciss) (Max) @ Vds | 435 pF @ 10 V | 595 pF @ 10 V | 270 pF @ 10 V |
| FET Feature | - | - | - |
| Power Dissipation (Max) | 1.5W (Ta) | 750mW (Ta) | 1.5W (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 6-DSBGA (1x1.5) | 6-DSBGA (1x1.5) | 6-DSBGA (1x1.5) |
| Package / Case | 6-UFBGA, DSBGA | 6-UFBGA, DSBGA | 6-UFBGA, DSBGA |
