Please send RFQ , we will respond immediately.

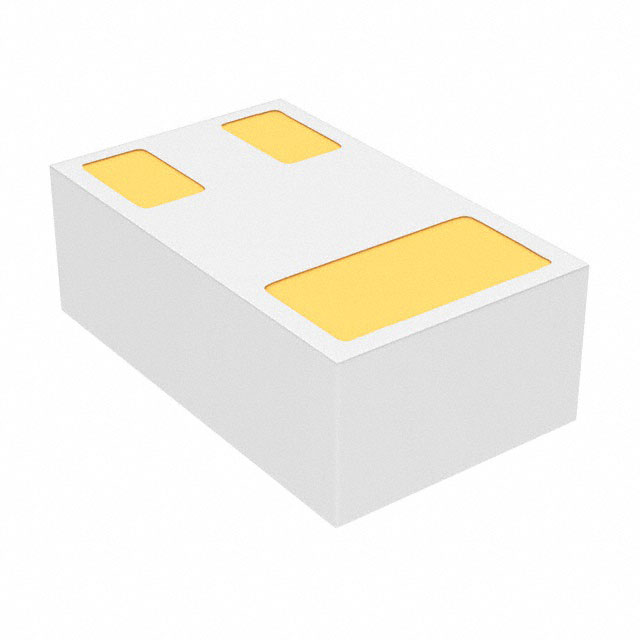

| Part Number | CSD23382F4T | CSD23381F4T | CSD23382F4 |
|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Active |
| FET Type | P-Channel | P-Channel | P-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 12 V | 12 V | 12 V |
| Current - Continuous Drain (Id) @ 25°C | 3.5A (Ta) | 2.3A (Ta) | 3.5A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 1.8V, 4.5V | 1.8V, 4.5V | 1.8V, 4.5V |
| Rds On (Max) @ Id, Vgs | 76mOhm @ 500mA, 4.5V | 175mOhm @ 500mA, 4.5V | 76mOhm @ 500mA, 4.5V |
| Vgs(th) (Max) @ Id | 1.1V @ 250µA | 1.2V @ 250µA | 1.1V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 1.35 nC @ 4.5 V | 1.14 nC @ 6 V | 1.35 nC @ 6 V |
| Vgs (Max) | ±8V | -8V | ±8V |
| Input Capacitance (Ciss) (Max) @ Vds | 235 pF @ 6 V | 236 pF @ 6 V | 235 pF @ 6 V |
| FET Feature | - | - | - |
| Power Dissipation (Max) | 500mW (Ta) | 500mW (Ta) | 500mW (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 3-PICOSTAR | 3-PICOSTAR | 3-PICOSTAR |
| Package / Case | 3-XFDFN | 3-XFDFN | 3-XFDFN |
