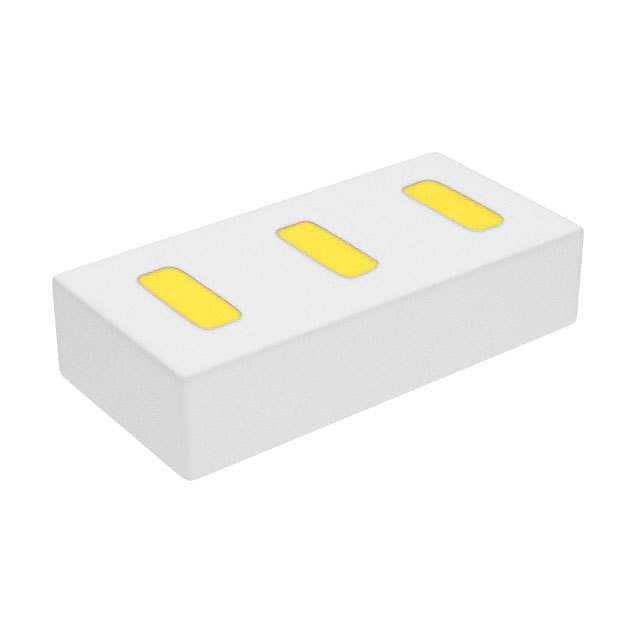

| Part Number | CSD23285F5T | CSD23285F5 |
|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments |
| Product Status | Active | Active |
| FET Type | P-Channel | P-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 12 V | 12 V |
| Current - Continuous Drain (Id) @ 25°C | 5.4A (Ta) | 5.4A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 1.5V, 4.5V | 1.5V, 4.5V |
| Rds On (Max) @ Id, Vgs | 35mOhm @ 1A, 4.5V | 35mOhm @ 1A, 4.5V |
| Vgs(th) (Max) @ Id | 950mV @ 250µA | 950mV @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 4.2 nC @ 4.5 V | 4.2 nC @ 4.5 V |
| Vgs (Max) | -6V | -6V |
| Input Capacitance (Ciss) (Max) @ Vds | 628 pF @ 6 V | 628 pF @ 6 V |
| FET Feature | - | - |
| Power Dissipation (Max) | 500mW (Ta) | 500mW (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |
| Supplier Device Package | 3-PICOSTAR | 3-PICOSTAR |
| Package / Case | 3-SMD, No Lead | 3-XFDFN |
