| Part Number | CSD22202W15 | CSD25202W15 |
|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments |
| Product Status | Active | Active |
| FET Type | P-Channel | P-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 8 V | 20 V |
| Current - Continuous Drain (Id) @ 25°C | 10A (Ta) | 4A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 2.5V, 4.5V | 1.8V, 4.5V |
| Rds On (Max) @ Id, Vgs | 12.2mOhm @ 2A, 4.5V | 26mOhm @ 2A, 4.5V |
| Vgs(th) (Max) @ Id | 1.1V @ 250µA | 1.05V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 8.4 nC @ 4.5 V | 7.5 nC @ 4.5 V |
| Vgs (Max) | -6V | -6V |
| Input Capacitance (Ciss) (Max) @ Vds | 1390 pF @ 4 V | 1010 pF @ 10 V |
| FET Feature | - | - |
| Power Dissipation (Max) | 1.5W (Ta) | 500mW (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |

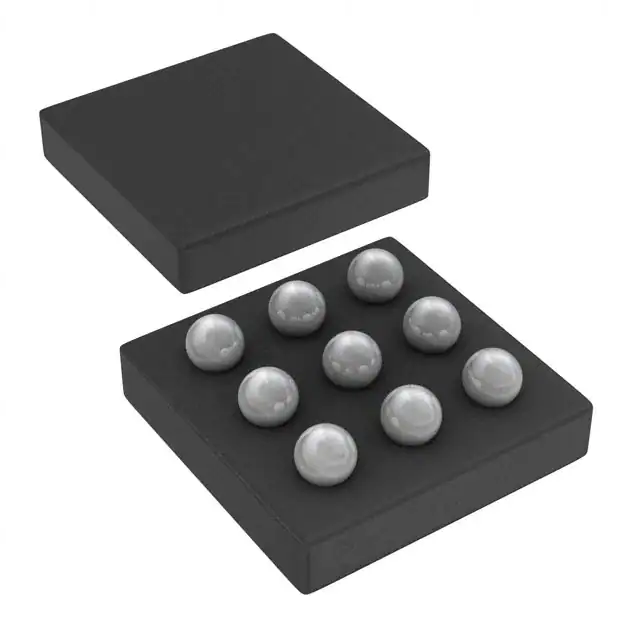

| Supplier Device Package | 9-DSBGA | 9-DSBGA |
| Package / Case | 9-UFBGA, DSBGA | 9-UFBGA, DSBGA |
