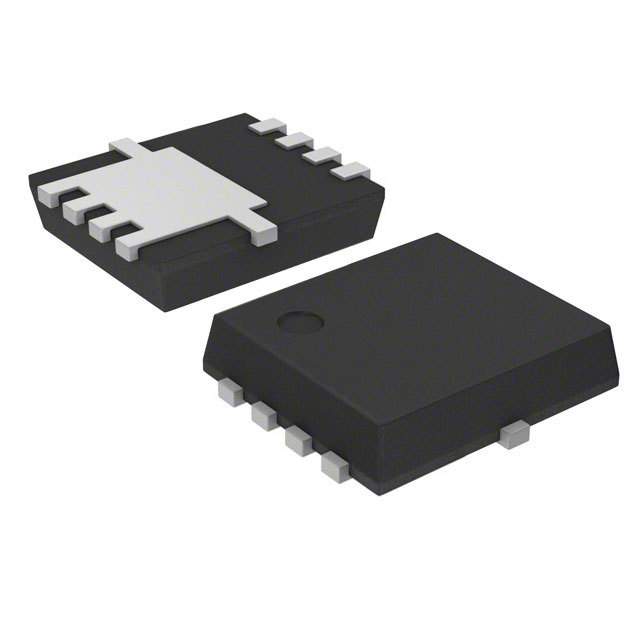

| Part Number | CSD19538Q3A | CSD19538Q3AT |
|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments |
| Product Status | Active | Active |
| FET Type | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 100 V | 100 V |
| Current - Continuous Drain (Id) @ 25°C | 15A (Ta) | 15A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 6V, 10V | 6V, 10V |
| Rds On (Max) @ Id, Vgs | 59mOhm @ 5A, 10V | 59mOhm @ 5A, 10V |
| Vgs(th) (Max) @ Id | 3.8V @ 250µA | 3.8V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 4.3 nC @ 10 V | 4.3 nC @ 10 V |
| Vgs (Max) | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 454 pF @ 50 V | 454 pF @ 50 V |
| FET Feature | - | - |
| Power Dissipation (Max) | 2.8W (Ta), 23W (Tc) | 2.8W (Ta), 23W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |
| Supplier Device Package | 8-VSONP (3x3.3) | 8-VSONP (3x3.3) |
| Package / Case | 8-PowerVDFN | 8-PowerVDFN |
