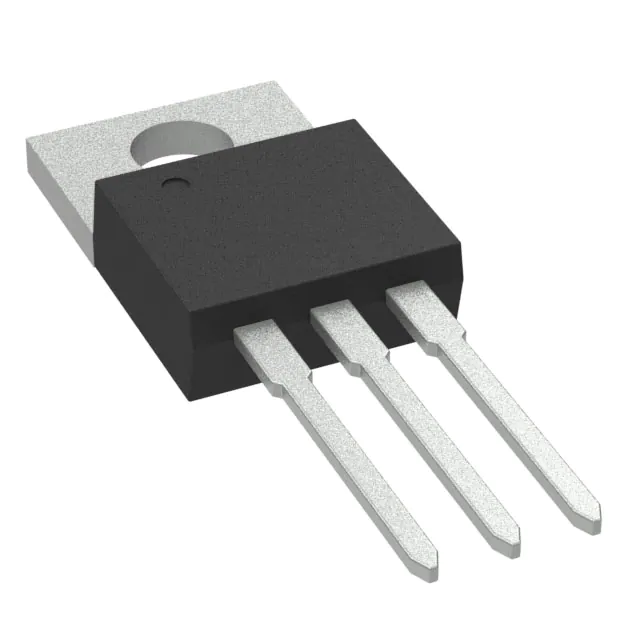

| Part Number | CSD19536KCS | CSD18536KCS | CSD19506KCS | CSD19531KCS | CSD19533KCS | CSD19534KCS | CSD19535KCS |
|---|---|---|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| FET Type | N-Channel | N-Channel | N-Channel | N-Channel | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 100 V | 60 V | 80 V | 100 V | 100 V | 100 V | 100 V |
| Current - Continuous Drain (Id) @ 25°C | 150A (Ta) | 200A (Ta) | 100A (Ta) | 100A (Ta) | 100A (Ta) | 100A (Ta) | 150A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 6V, 10V | 4.5V, 10V | 6V, 10V | 6V, 10V | 6V, 10V | 6V, 10V | 6V, 10V |
| Rds On (Max) @ Id, Vgs | 2.7mOhm @ 100A, 10V | 1.6mOhm @ 100A, 10V | 2.3mOhm @ 100A, 10V | 7.7mOhm @ 60A, 10V | 10.5mOhm @ 55A, 10V | 16.5mOhm @ 30A, 10V | 3.6mOhm @ 100A, 10V |
| Vgs(th) (Max) @ Id | 3.2V @ 250µA | 2.2V @ 250µA | 3.2V @ 250µA | 3.3V @ 250µA | 3.4V @ 250µA | 3.4V @ 250µA | 3.4V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 153 nC @ 10 V | 108 nC @ 10 V | 156 nC @ 10 V | 38 nC @ 10 V | 35 nC @ 10 V | 22.2 nC @ 10 V | 101 nC @ 10 V |
| Vgs (Max) | ±20V | ±20V | ±20V | ±20V | ±20V | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 12000 pF @ 50 V | 11430 pF @ 30 V | 12200 pF @ 40 V | 3870 pF @ 50 V | 2670 pF @ 50 V | 1670 pF @ 50 V | 7930 pF @ 50 V |
| FET Feature | - | - | - | - | - | - | - |
| Power Dissipation (Max) | 375W (Tc) | 375W (Tc) | 375W (Tc) | 214W (Tc) | 188W (Tc) | 118W (Tc) | 300W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Supplier Device Package | TO-220-3 | TO-220-3 | TO-220-3 | TO-220-3 | TO-220-3 | TO-220-3 | TO-220-3 |
| Package / Case | TO-220-3 | TO-220-3 | TO-220-3 | TO-220-3 | TO-220-3 | TO-220-3 | TO-220-3 |
