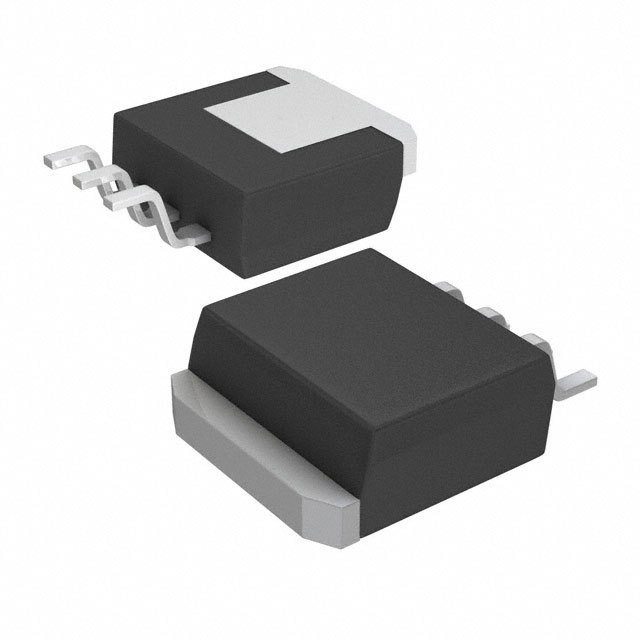

| Part Number | CSD18536KTT | CSD19536KTT | CSD18536KTTT | CSD18535KTT |
|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Active | Active |
| FET Type | N-Channel | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 60 V | 100 V | 60 V | 60 V |
| Current - Continuous Drain (Id) @ 25°C | 200A (Ta) | 200A (Ta) | 200A (Ta), 349A (Tc) | 200A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V | 6V, 10V | 4.5V, 10V | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 1.6mOhm @ 100A, 10V | 2.4mOhm @ 100A, 10V | 1.6mOhm @ 100A, 10V | 2mOhm @ 100A, 10V |
| Vgs(th) (Max) @ Id | 2.2V @ 250µA | 3.2V @ 250µA | 2.2V @ 250µA | 2.4V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 140 nC @ 10 V | 153 nC @ 10 V | 140 nC @ 10 V | 81 nC @ 10 V |
| Vgs (Max) | ±20V | ±20V | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 11430 pF @ 30 V | 12000 pF @ 50 V | 11430 pF @ 30 V | 6620 pF @ 30 V |
| FET Feature | - | - | - | - |
| Power Dissipation (Max) | 375W (Tc) | 375W (Tc) | 375W (Tc) | 300W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | DDPAK/TO-263-3 | DDPAK/TO-263-3 | DDPAK/TO-263-3 | DDPAK/TO-263-3 |
| Package / Case | TO-263-4, D²Pak (3 Leads + Tab), TO-263AA | TO-263-4, D²Pak (3 Leads + Tab), TO-263AA | TO-263-4, D²Pak (3 Leads + Tab), TO-263AA | TO-263-4, D²Pak (3 Leads + Tab), TO-263AA |
