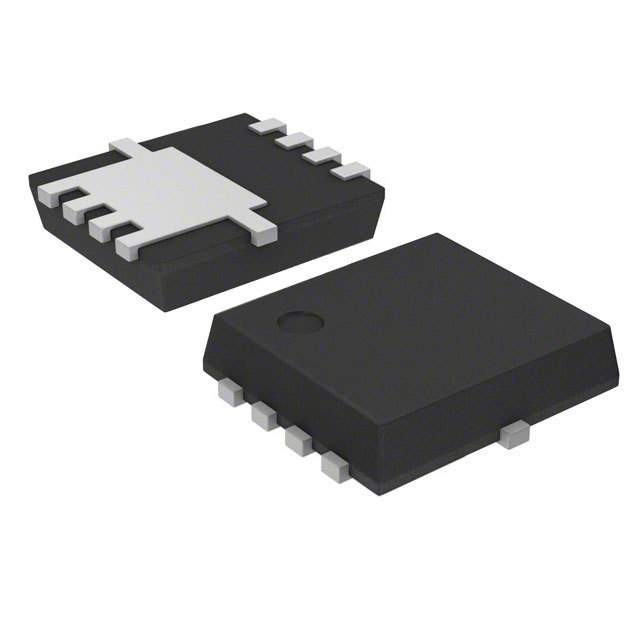

| Part Number | CSD17581Q3A | CSD17581Q5A | CSD17581Q3AT | CSD17551Q3A |
|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Active | Active |
| FET Type | N-Channel | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V | 30 V | 30 V | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 21A (Ta) | 24A (Ta), 123A (Tc) | 60A (Tc) | 12A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V | 4.5V, 10V | 4.5V, 10V | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 3.8mOhm @ 16A, 10V | 3.4mOhm @ 16A, 10V | 3.8mOhm @ 16A, 10V | 9mOhm @ 11A, 10V |
| Vgs(th) (Max) @ Id | 1.7V @ 250µA | 1.7V @ 250µA | 1.7V @ 250µA | 2.1V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 54 nC @ 10 V | 54 nC @ 10 V | 54 nC @ 10 V | 7.8 nC @ 4.5 V |
| Vgs (Max) | ±20V | ±20V | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 3640 pF @ 15 V | 3640 pF @ 15 V | 3640 pF @ 15 V | 1370 pF @ 15 V |
| FET Feature | - | - | - | - |
| Power Dissipation (Max) | 2.8W (Ta), 63W (Tc) | 3.1W (Ta), 83W (Tc) | 2.8W (Ta), 63W (Tc) | 2.6W (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 155°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 8-VSONP (3x3.3) | 8-VSONP (5x6) | 8-VSONP (3x3.3) | 8-SON (3.3x3.3) |
| Package / Case | 8-PowerVDFN | 8-PowerTDFN | 8-PowerVDFN | 8-PowerVDFN |
