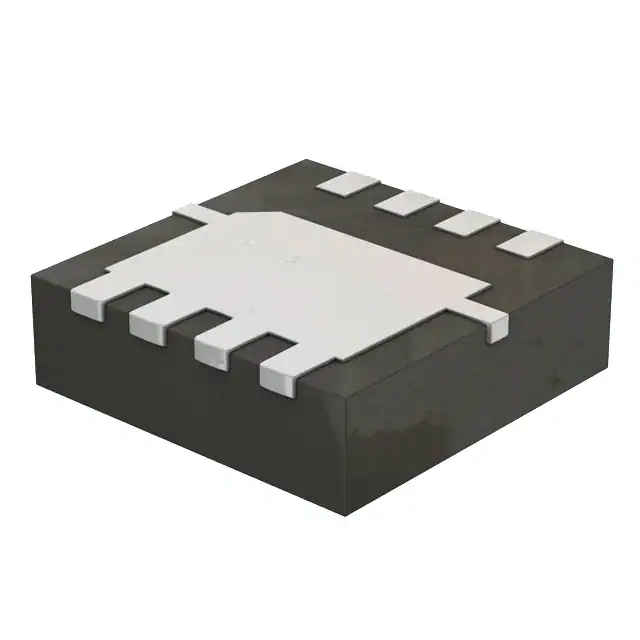

| Part Number | CSD17575Q3T | CSD17575Q3 |
|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments |
| Product Status | Active | Active |
| FET Type | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 60A (Ta) | 60A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 2.3mOhm @ 25A, 10V | 2.3mOhm @ 25A, 10V |
| Vgs(th) (Max) @ Id | 1.8V @ 250µA | 1.8V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 30 nC @ 4.5 V | 30 nC @ 4.5 V |
| Vgs (Max) | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 4420 pF @ 15 V | 4420 pF @ 15 V |
| FET Feature | - | - |
| Power Dissipation (Max) | 2.8W (Ta), 108W (Tc) | 2.8W (Ta), 108W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |
| Supplier Device Package | 8-VSON-CLIP (3.3x3.3) | 8-VSON-CLIP (3.3x3.3) |
| Package / Case | 8-PowerTDFN | 8-PowerTDFN |
