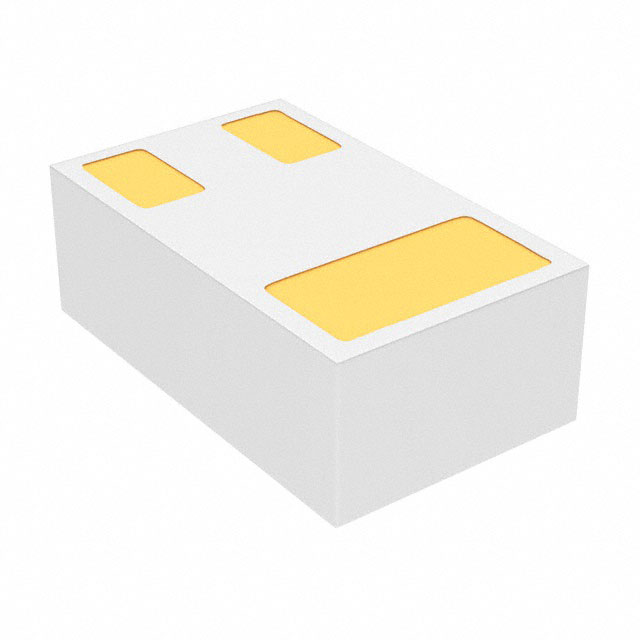

| Part Number | CSD17484F4 | CSD17484F4T | CSD17483F4 |
|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Active |
| FET Type | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V | 30 V | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 3A (Ta) | 3A (Ta) | 1.5A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 1.8V, 8V | 1.8V, 8V | 1.8V, 4.5V |
| Rds On (Max) @ Id, Vgs | 121mOhm @ 500mA, 8V | 121mOhm @ 500mA, 8V | 240mOhm @ 500mA, 8V |
| Vgs(th) (Max) @ Id | 1.1V @ 250µA | 1.1V @ 250µA | 1.1V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 1.2 nC @ 4.5 V | 0.2 nC @ 8 V | 1.3 nC @ 4.5 V |
| Vgs (Max) | 12V | 12V | 12V |
| Input Capacitance (Ciss) (Max) @ Vds | 195 pF @ 15 V | 195 pF @ 15 V | 190 pF @ 15 V |
| FET Feature | - | - | - |
| Power Dissipation (Max) | 500mW (Ta) | 500mW (Ta) | 500mW (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 3-PICOSTAR | 3-PICOSTAR | 3-PICOSTAR |
| Package / Case | 3-XFDFN | 3-XFDFN | 3-XFDFN |
