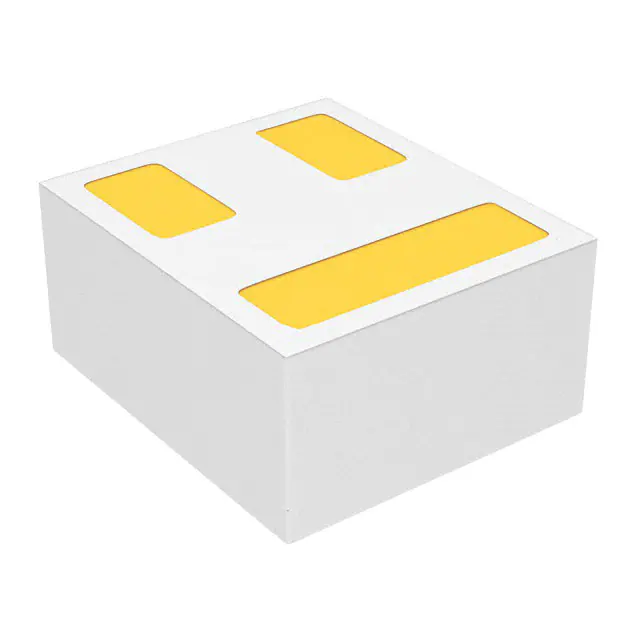

| Part Number | CSD15380F3 | CSD15380F3T | CSD13380F3 |
|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Active |
| FET Type | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 20 V | 20 V | 12 V |
| Current - Continuous Drain (Id) @ 25°C | 500mA (Ta) | 500mA (Ta) | 3.6A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 2.8V, 8V | 2.5V, 8V | 1.8V, 4.5V |
| Rds On (Max) @ Id, Vgs | 1190mOhm @ 100mA, 8V | 1190mOhm @ 100mA, 8V | 76mOhm @ 400mA, 4.5V |
| Vgs(th) (Max) @ Id | 1.35V @ 2.5µA | 1.35V @ 2.5µA | 1.3V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 0.281 nC @ 10 V | 0.281 nC @ 10 V | 1.2 nC @ 4.5 V |
| Vgs (Max) | 10V | 10V | 8V |
| Input Capacitance (Ciss) (Max) @ Vds | 10.5 pF @ 10 V | 10.5 pF @ 10 V | 156 pF @ 6 V |
| FET Feature | - | - | - |
| Power Dissipation (Max) | 500mW (Ta) | 500mW (Ta) | 500mW (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 3-PICOSTAR | 3-PICOSTAR | 3-PICOSTAR |
| Package / Case | 3-XFDFN | 3-XFDFN | 3-XFDFN |
