| Part Number | COP8SCR9IMT8 | COP8SDR9IMT8 | COP8SCR9KMT8 | COP8CCR9IMT8 | COP8SBR9IMT8 | COP8SCR9IMT7 |
|---|---|---|---|---|---|---|
| Manufacturer | Texas Instruments | National Semiconductor | National Semiconductor | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Core Processor | COP8 | COP8 | COP8 | COP8 | COP8 | COP8 |
| Core Size | 8-Bit | 8-Bit | 8-Bit | 8-Bit | 8-Bit | 8-Bit |
| Speed | 20MHz | 20MHz | 20MHz | 20MHz | 20MHz | 20MHz |
| Connectivity | Microwire/Plus (SPI), UART/USART | Microwire/Plus (SPI), UART/USART | Microwire/Plus (SPI), UART/USART | Microwire/Plus (SPI), UART/USART | Microwire/Plus (SPI), UART/USART | Microwire/Plus (SPI), UART/USART |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT | POR, PWM, WDT | Brown-out Detect/Reset, POR, PWM, WDT | Brown-out Detect/Reset, POR, PWM, WDT | Brown-out Detect/Reset, POR, PWM, WDT | Brown-out Detect/Reset, POR, PWM, WDT |
| Number of I/O | 39 | 39 | 49 | 39 | 39 | 39 |
| Program Memory Size | 32KB (32K x 8) | 32KB (32K x 8) | 32KB (32K x 8) | 32KB (32K x 8) | 32KB (32K x 8) | 32KB (32K x 8) |
| Program Memory Type | Flash | Flash | Flash | Flash | Flash | Flash |
| EEPROM Size | - | - | - | - | - | - |
| RAM Size | 1K x 8 | 1K x 8 | 1K x 8 | 1K x 8 | 1K x 8 | 1K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 4.5V ~ 5.5V |
| Data Converters | - | - | - | A/D 16x10b | - | - |
| Oscillator Type | Internal | Internal | Internal | Internal | Internal | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

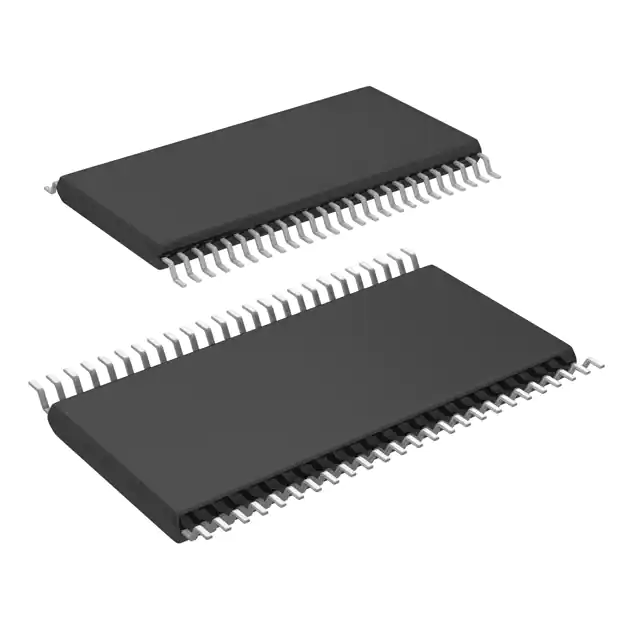

| Package / Case | 48-TFSOP (0.240", 6.10mm Width) | 48-TFSOP (0.240", 6.10mm Width) | 56-TFSOP (0.240", 6.10mm Width) | 48-TFSOP (0.240", 6.10mm Width) | 48-TFSOP (0.240", 6.10mm Width) | 48-TFSOP (0.240", 6.10mm Width) |
| Supplier Device Package | 48-TSSOP | 48-TSSOP | 56-TSSOP | 48-TSSOP | 48-TSSOP | 48-TSSOP |
