Texas Instruments-CDCV857DGGG4 - Clock/Timing - Clock Generators, PLLs, Frequency Synthesizers Product Specifications and Latest Quotes

Part Number	CDCV857DGGG4	CDCV857DGGRG4	CDCVF857DGGG4	CDCV850DGGG4	CDCV857ADGGG4	CDCV857BDGGG4
Manufacturer	Texas Instruments	Texas Instruments	Texas Instruments	Texas Instruments	Texas Instruments	Texas Instruments
Product Status	Obsolete	Obsolete	Discontinued at Digi-Key	Obsolete	Discontinued at Digi-Key	Obsolete
Type	PLL Clock Driver	PLL Clock Driver	PLL Clock Driver	PLL Clock Driver	PLL Clock Driver	PLL Clock Driver
PLL	Yes with Bypass	Yes with Bypass	Yes with Bypass	Yes with Bypass	Yes with Bypass	Yes with Bypass
Input	Clock	Clock	SSTL-2	LVTTL, SSTL-2	Clock	Clock
Output	Clock	Clock	SSTL-2	SSTL-2	Clock	Clock
Number of Circuits	1	1	1	1	1	1
Ratio - Input:Output	1:10	1:10	2:11	1:11	1:10	1:10
Differential - Input:Output	Yes/Yes	Yes/Yes	Yes/Yes	Yes/Yes	Yes/Yes	Yes/Yes
Frequency - Max	200MHz	200MHz	220MHz	140MHz	180MHz	200MHz
Divider/Multiplier	No/No	No/No	No/No	No/No	No/No	No/No
Voltage - Supply	2.3V ~ 2.7V	2.3V ~ 2.7V	2.3V ~ 2.7V	2.3V ~ 2.7V	2.3V ~ 2.7V	2.3V ~ 2.7V
Operating Temperature	0°C ~ 85°C	0°C ~ 85°C	-40°C ~ 85°C	0°C ~ 85°C	0°C ~ 85°C	0°C ~ 85°C
Mounting Type	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount
Package / Case	48-TFSOP (0.240", 6.10mm Width)	48-TFSOP (0.240", 6.10mm Width)	48-TFSOP (0.240", 6.10mm Width)	48-TFSOP (0.240", 6.10mm Width)	48-TFSOP (0.240", 6.10mm Width)	48-TFSOP (0.240", 6.10mm Width)
Supplier Device Package	48-TSSOP	48-TSSOP	48-TSSOP	48-TSSOP	48-TSSOP	48-TSSOP

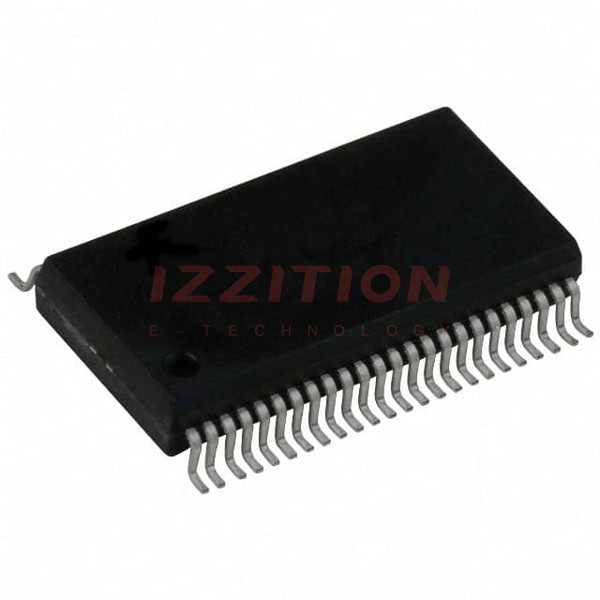

Texas Instruments CDCV857DGGG4
