| Part Number | CDC586PAH | CDC586PAHR | CDC2586PAH | CDC582PAH |
|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Type | PLL Clock Driver | PLL Clock Driver | PLL Clock Driver | PLL Clock Driver |
| PLL | Yes with Bypass | Yes with Bypass | Yes with Bypass | Yes with Bypass |
| Input | LVTTL | LVTTL | LVTTL | LVPECL |
| Output | LVTTL | LVTTL | LVTTL | LVTTL |
| Number of Circuits | 1 | 1 | 1 | 1 |
| Ratio - Input:Output | 1:12 | 1:12 | 1:12 | 1:12 |
| Differential - Input:Output | No/No | No/No | No/No | Yes/No |
| Frequency - Max | 100MHz | 100MHz | 100MHz | 100MHz |
| Divider/Multiplier | Yes/Yes | Yes/Yes | Yes/Yes | Yes/Yes |
| Voltage - Supply | 3V ~ 3.6V | 3V ~ 3.6V | 3V ~ 3.6V | 3V ~ 3.6V |
| Operating Temperature | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

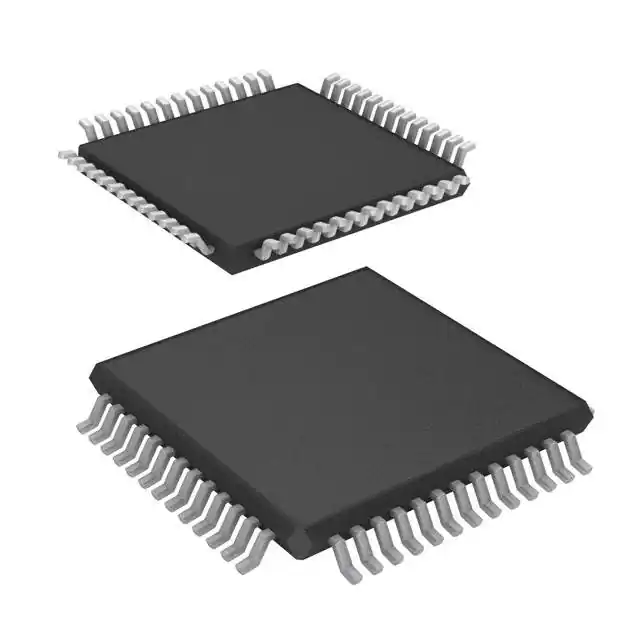

| Package / Case | 52-TQFP | 52-TQFP | 52-TQFP | 52-TQFP |
| Supplier Device Package | 52-TQFP (10x10) | 52-TQFP (10x10) | 52-TQFP (10x10) | 52-TQFP (10x10) |
