Please send RFQ , we will respond immediately.

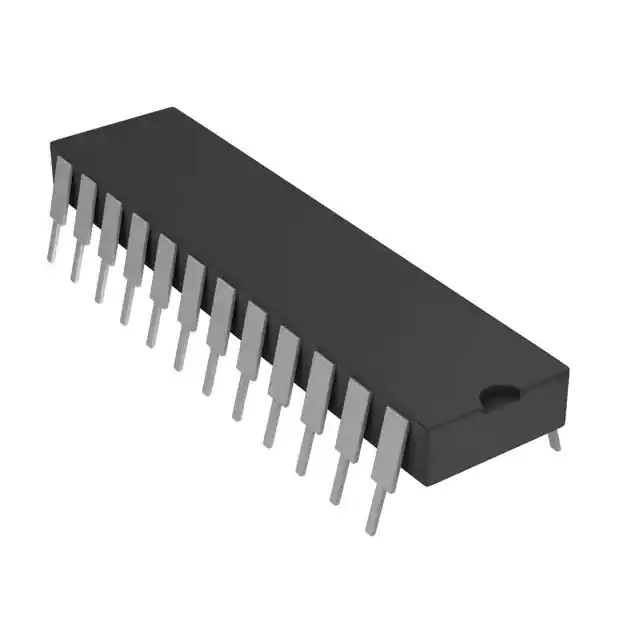

| Part Number | CD74HC154EG4 | CD74HC154ENG4 | CD74HC157EG4 | CD74HC154MG4 | CD74HC151EG4 | CD74HC153EG4 |
|---|---|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Obsolete | Obsolete | Discontinued at Digi-Key | Discontinued at Digi-Key | Discontinued at Digi-Key | Discontinued at Digi-Key |
| Type | Decoder/Demultiplexer | Decoder/Demultiplexer | Multiplexer | Decoder/Demultiplexer | Multiplexer | Multiplexer |
| Circuit | 1 x 4:16 | 1 x 4:16 | 4 x 2:1 | 1 x 4:16 | 1 x 8:1 | 2 x 4:1 |
| Independent Circuits | 1 | 1 | 1 | 1 | 1 | 1 |
| Current - Output High, Low | 5.2mA, 5.2mA | 5.2mA, 5.2mA | 5.2mA, 5.2mA | 5.2mA, 5.2mA | 5.2mA, 5.2mA | 5.2mA, 5.2mA |
| Voltage Supply Source | Single Supply | Single Supply | Single Supply | Single Supply | Single Supply | Single Supply |
| Voltage - Supply | 2V ~ 6V | 2V ~ 6V | 2V ~ 6V | 2V ~ 6V | 2V ~ 6V | 2V ~ 6V |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Surface Mount | Through Hole | Through Hole |
| Package / Case | 24-DIP (0.600", 15.24mm) | 24-DIP (0.300", 7.62mm) | 16-DIP (0.300", 7.62mm) | 24-SOIC (0.295", 7.50mm Width) | 16-DIP (0.300", 7.62mm) | 16-DIP (0.300", 7.62mm) |
| Supplier Device Package | 24-PDIP | 24-PDIP | 16-PDIP | 24-SOIC | 16-PDIP | 16-PDIP |
