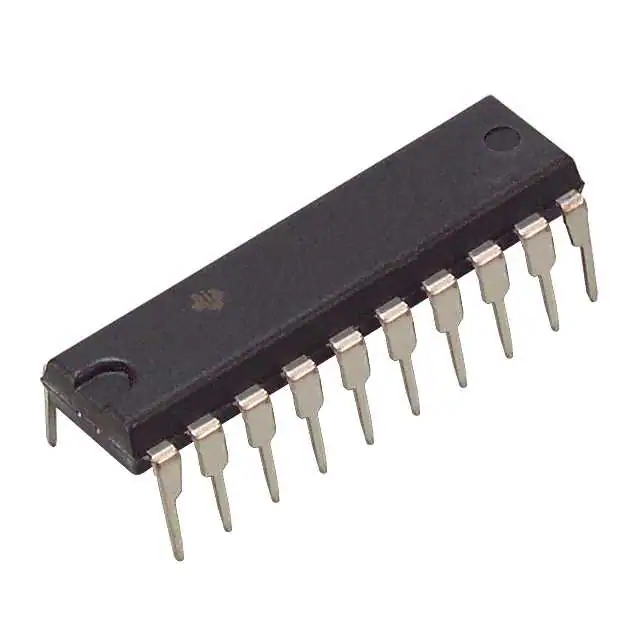

| Part Number | CD74AC574E | CD74AC74E | CD74AC574EX | CD74ACT574E | CD74ACT74E | CD74AC574M | CD74AC174E | CD74AC374E | CD74AC534E | CD74AC564E |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Texas Instruments | Harris Corporation | Harris Corporation | Harris Corporation | Texas Instruments | Harris Corporation | Harris Corporation | Harris Corporation | Harris Corporation | Harris Corporation |
| Product Status | Active | Obsolete | Active | Obsolete | Active | Obsolete | Obsolete | Obsolete | Active | Active |
| Function | Standard | Set(Preset) and Reset | Standard | Standard | Set(Preset) and Reset | Standard | Master Reset | Standard | Standard | Standard |
| Type | D-Type | D-Type | D-Type | D-Type | D-Type | D-Type | D-Type | D-Type | D-Type | D-Type |
| Output Type | Tri-State, Non-Inverted | Complementary | Tri-State, Non-Inverted | Tri-State, Non-Inverted | Complementary | Tri-State, Non-Inverted | Non-Inverted | Tri-State, Non-Inverted | Tri-State | Tri-State, Inverted |
| Number of Elements | 1 | 2 | 1 | 1 | 2 | 1 | 1 | 1 | 1 | 1 |
| Number of Bits per Element | 8 | 1 | 8 | 8 | 1 | 8 | 6 | 8 | 8 | 8 |
| Clock Frequency | 125 MHz | 110 MHz | 125 MHz | 110 MHz | 85 MHz | 125 MHz | 95 MHz | 125 MHz | 125 MHz | 125 MHz |
| Max Propagation Delay @ V, Max CL | 10.8ns @ 5V, 50pF | 10ns @ 5V, 50pF | 10.8ns @ 5V, 50pF | 11.2ns @ 5V, 50pF | 9.5ns @ 5V, 50pF | 10.8ns @ 5V, 50pF | 18.9ns @ 5V, 50pF | 10.8ns @ 5V, 50pF | 10.8ns @ 5V, 50pF | 11.3ns @ 5V, 50pF |
| Trigger Type | Positive Edge | Positive Edge | Positive Edge | Positive Edge | Positive Edge | Positive Edge | Positive Edge | Positive Edge | Positive Edge | Positive Edge |
| Current - Output High, Low | 24mA, 24mA | 24mA, 24mA | 24mA, 24mA | 24mA, 24mA | 24mA, 24mA | 24mA, 24mA | 24mA, 24mA | 24mA, 24mA | 24mA, 24mA | 24mA, 24mA |
| Voltage - Supply | 1.5V ~ 5.5V | 1.5V ~ 5.5V | 1.5V ~ 5.5V | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 1.5V ~ 5.5V | 1.5V ~ 5.5V | 1.5V ~ 5.5V | 1.5V ~ 5.5V | 1.5V ~ 5.5V |
| Current - Quiescent (Iq) | 8 µA | 4 µA | 8 µA | 8 µA | 4 µA | 8 µA | 8 µA | 8 µA | 8 µA | 8 µA |
| Input Capacitance | 10 pF | 10 pF | 10 pF | 10 pF | 10 pF | 10 pF | 10 pF | 10 pF | 10 pF | 10 pF |
| Operating Temperature | -55°C ~ 125°C (TA) | -55°C ~ 125°C (TA) | -55°C ~ 125°C (TA) | -55°C ~ 125°C (TA) | -55°C ~ 125°C (TA) | -55°C ~ 125°C (TA) | -55°C ~ 125°C (TA) | -55°C ~ 125°C (TA) | -55°C ~ 125°C (TA) | -55°C ~ 125°C (TA) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Surface Mount | Through Hole | Through Hole | Through Hole | Through Hole |
| Supplier Device Package | 20-PDIP | 14-PDIP | 20-PDIP | 20-PDIP | 14-PDIP | 20-SOIC | 16-PDIP | 20-PDIP | 20-PDIP | 20-PDIP |
| Package / Case | 20-DIP (0.300", 7.62mm) | 14-DIP (0.300", 7.62mm) | 20-DIP (0.300", 7.62mm) | 20-DIP (0.300", 7.62mm) | 14-DIP (0.300", 7.62mm) | 20-SOIC (0.295", 7.50mm Width) | 16-DIP (0.300", 7.62mm) | 20-DIP (0.300", 7.62mm) | 20-DIP (0.300", 7.62mm) | 20-DIP (0.300", 7.62mm) |
