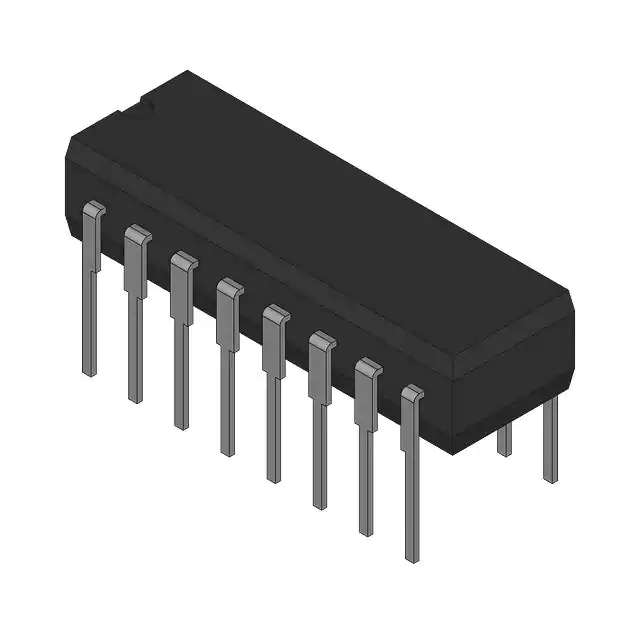

| Part Number | CD54HCT109F3A | CD54ACT109F3A | CD54HC109F3A |
|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Harris Corporation |
| Product Status | Active | Active | Active |
| Function | - | - | Set(Preset) and Reset |
| Type | - | - | JK Type |
| Output Type | - | - | Complementary |
| Number of Elements | - | - | 2 |
| Number of Bits per Element | - | - | 1 |
| Clock Frequency | - | - | 60 MHz |
| Max Propagation Delay @ V, Max CL | - | - | 31ns @ 6V, 50pF |
| Trigger Type | - | - | Positive Edge |
| Current - Output High, Low | - | - | 5.2mA, 5.2mA |
| Voltage - Supply | - | - | 2V ~ 6V |
| Current - Quiescent (Iq) | - | - | 4 µA |
| Input Capacitance | - | - | 10 pF |
| Operating Temperature | - | - | -55°C ~ 125°C (TA) |
| Mounting Type | - | - | Through Hole |
| Supplier Device Package | - | - | 16-CDIP |
| Package / Case | - | - | 16-CDIP (0.300", 7.62mm) |
