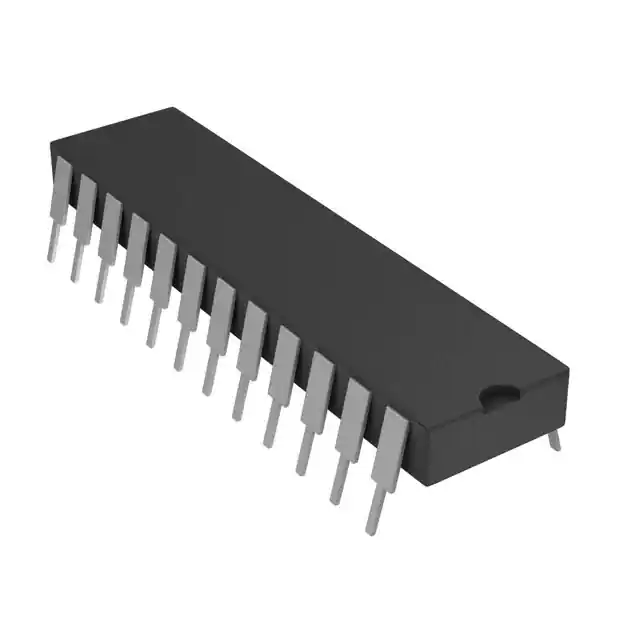

| Part Number | CD4514BEG4 | CD4515BEG4 | CD4512BEG4 |
|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Obsolete | Obsolete | Discontinued at Digi-Key |
| Type | Decoder/Demultiplexer | Decoder/Demultiplexer | Data Selector/Multiplexer |
| Circuit | 1 x 4:16 | 1 x 4:16 | 1 x 8:1 |
| Independent Circuits | 1 | 1 | 1 |
| Current - Output High, Low | 6.8mA, 6.8mA | 6.8mA, 6.8mA | 6.8mA, 6.8mA |
| Voltage Supply Source | Dual Supply | Dual Supply | Dual Supply |
| Voltage - Supply | 3V ~ 18V | 3V ~ 18V | 3V ~ 18V |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | 24-DIP (0.600", 15.24mm) | 24-DIP (0.600", 15.24mm) | 16-DIP (0.300", 7.62mm) |
| Supplier Device Package | 24-PDIP | 24-PDIP | 16-PDIP |
