Please send RFQ , we will respond immediately.

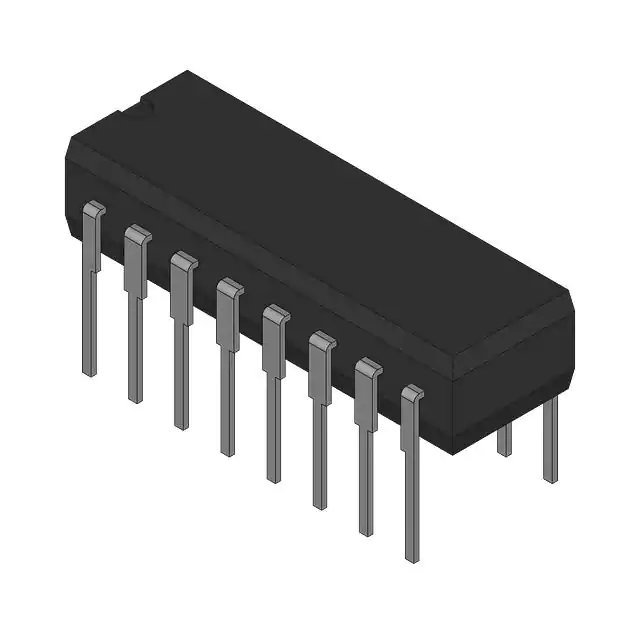

| Part Number | CD4076BF | CD4076BM | CD4076BK | CD4076BE |
|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Harris Corporation | Texas Instruments |
| Product Status | Active | Active | Active | Active |
| Function | - | Reset | - | Reset |
| Type | - | D-Type | - | D-Type |
| Output Type | - | Tri-State, Non-Inverted | - | Tri-State, Non-Inverted |
| Number of Elements | - | 1 | - | 1 |
| Number of Bits per Element | - | 4 | - | 4 |
| Clock Frequency | - | 16 MHz | - | 16 MHz |
| Max Propagation Delay @ V, Max CL | - | 180ns @ 15V, 50pF | - | 180ns @ 15V, 50pF |
| Trigger Type | - | Positive Edge | - | Positive Edge |
| Current - Output High, Low | - | 6.8mA, 6.8mA | - | 6.8mA, 6.8mA |
| Voltage - Supply | - | 3V ~ 18V | - | 3V ~ 18V |
| Current - Quiescent (Iq) | - | 20 µA | - | 20 µA |
| Input Capacitance | - | 5 pF | - | 5 pF |
| Operating Temperature | - | -55°C ~ 125°C (TA) | - | -55°C ~ 125°C (TA) |
| Mounting Type | - | Surface Mount | - | Through Hole |
| Supplier Device Package | - | 16-SOIC | - | 16-PDIP |
| Package / Case | - | 16-SOIC (0.154", 3.90mm Width) | - | 16-DIP (0.300", 7.62mm) |
