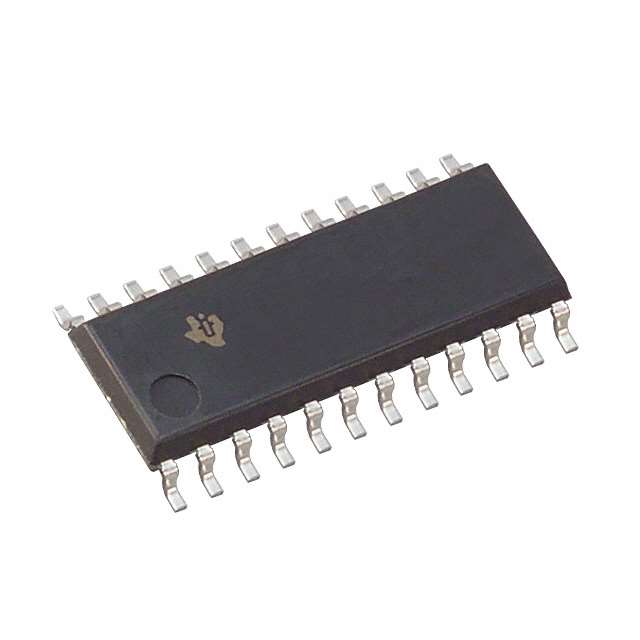

| Part Number | CD4067BNSRG4 | CD4097BNSRG4 | CD4067BNSRE4 |
|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Obsolete | Obsolete | Obsolete |
| Switch Circuit | - | - | - |
| Multiplexer/Demultiplexer Circuit | 16:1 | 8:1 | 16:1 |
| Number of Circuits | 1 | 2 | 1 |
| On-State Resistance (Max) | 240Ohm | 240Ohm | 240Ohm |
| Channel-to-Channel Matching (ΔRon) | 5Ohm | 5Ohm | 5Ohm |
| Voltage - Supply, Single (V+) | 3V ~ 18V | 3V ~ 18V | 3V ~ 18V |
| Voltage - Supply, Dual (V±) | - | - | - |
| Switch Time (Ton, Toff) (Max) | - | - | - |
| -3db Bandwidth | 14MHz | 20MHz | 14MHz |
| Charge Injection | - | - | - |
| Channel Capacitance (CS(off), CD(off)) | 0.2pF, 55pF | 0.2pF, 35pF | 0.2pF, 55pF |
| Current - Leakage (IS(off)) (Max) | 100nA | 100nA | 100nA |
| Crosstalk | - | - | - |
| Operating Temperature | -55°C ~ 125°C (TA) | -55°C ~ 125°C (TA) | -55°C ~ 125°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 24-SOIC (0.209", 5.30mm Width) | 24-SOIC (0.209", 5.30mm Width) | 24-SOIC (0.209", 5.30mm Width) |
| Supplier Device Package | 24-SO | 24-SO | 24-SO |
