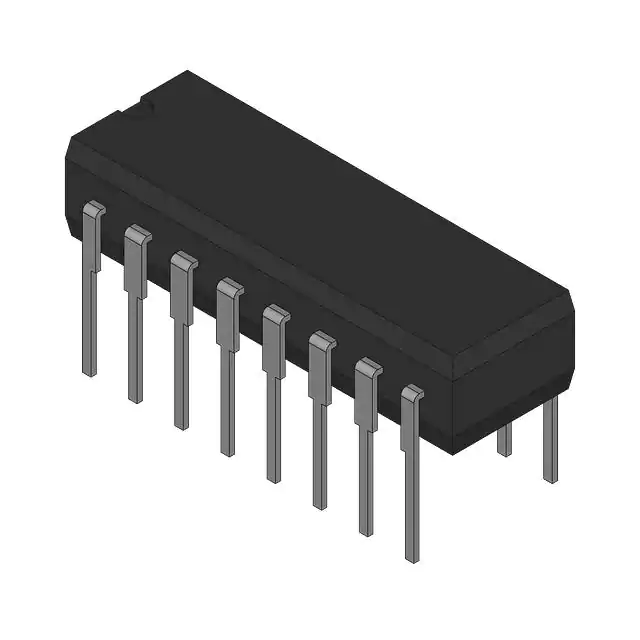

| Part Number | CD4052BF | CD4053BF | CD4052BM | CD4051BF | CD4052BD | CD4052BE |
|---|---|---|---|---|---|---|
| Manufacturer | Texas Instruments | Harris Corporation | Texas Instruments | Harris Corporation | Harris Corporation | Texas Instruments |
| Product Status | Active | Active | Active | Active | Active | Active |
| Switch Circuit | SP4T | SPDT | SP4T | - | SP4T | SP4T |
| Multiplexer/Demultiplexer Circuit | 4:1 | 2:1 | 4:1 | 8:1 | 4:1 | 4:1 |
| Number of Circuits | 2 | 3 | 2 | 1 | 2 | 2 |
| On-State Resistance (Max) | 240Ohm | 240Ohm | 240Ohm | 240Ohm | 240Ohm | 240Ohm |
| Channel-to-Channel Matching (ΔRon) | 5Ohm | 5Ohm | 5Ohm | 5Ohm | 5Ohm | 5Ohm |
| Voltage - Supply, Single (V+) | 3V ~ 20V | 3V ~ 20V | 3V ~ 20V | 3V ~ 20V | 3V ~ 20V | 3V ~ 20V |
| Voltage - Supply, Dual (V±) | 3V ~ 20V | 3V ~ 20V | ±2.5V ~ 9V | 3V ~ 20V | 3V ~ 20V | ±2.5V ~ 9V |
| Switch Time (Ton, Toff) (Max) | - | - | - | - | - | - |
| -3db Bandwidth | 25MHz | 30MHz | 25MHz | 20MHz | 20MHz | 25MHz |
| Charge Injection | - | - | - | - | - | - |
| Channel Capacitance (CS(off), CD(off)) | 0.2pF, 18pF | 0.2pF, 9pF | 0.2pF, 18pF | 0.2pF, 30pF | 0.2pF, 18pF | 0.2pF, 18pF |
| Current - Leakage (IS(off)) (Max) | 100nA | 100nA | 100nA | 100nA | 100nA | 100nA |
| Crosstalk | - | -40dB @ 6MHz | -40dB @ 10MHz | -40dB @ 3MHz | -40dB @ 10MHz | -40dB @ 10MHz |
| Operating Temperature | -55°C ~ 125°C (TA) | -55°C ~ 125°C (TA) | -55°C ~ 125°C (TA) | -55°C ~ 125°C (TA) | -55°C ~ 125°C (TA) | -55°C ~ 125°C (TA) |
| Mounting Type | Through Hole | Through Hole | Surface Mount | Through Hole | Surface Mount | Through Hole |
| Package / Case | 16-CDIP (0.300", 7.62mm) | 16-CDIP (0.300", 7.62mm) | 16-SOIC (0.154", 3.90mm Width) | 16-CDIP (0.300", 7.62mm) | 16-SOIC (0.154", 3.90mm Width) | 16-DIP (0.300", 7.62mm) |
| Supplier Device Package | 16-CDIP | 16-CDIP | 16-SOIC | 16-CDIP | 16-SOIC | 16-PDIP |
