Please send RFQ , we will respond immediately.

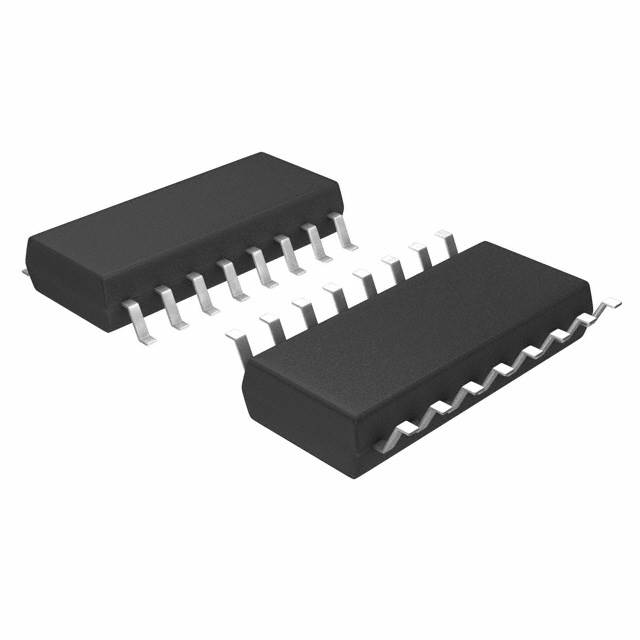

| Part Number | CD4020BNSR | CD4026BNSR | CD4040BNSR | CD4029BNSR | CD4022BNSR | CD4024BNSR | CD4020BNS |
|---|---|---|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Logic Type | Binary Counter | Counter, Decade | Binary Counter | Binary Counter, Decade | Binary Counter | Binary Counter | Binary Counter |
| Direction | Up | Up | Up | Up, Down | Up | Up | Up |
| Number of Elements | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of Bits per Element | 14 | 5 | 12 | 4 | 4 | 7 | 14 |
| Reset | Asynchronous | Asynchronous | Asynchronous | Asynchronous | Asynchronous | Asynchronous | Asynchronous |
| Timing | - | Synchronous | - | Synchronous | - | - | - |
| Count Rate | 24 MHz | 16 MHz | 12 MHz | 11 MHz | 6 MHz | 24 MHz | 24 MHz |
| Trigger Type | Negative Edge | Positive Edge | Negative Edge | Positive Edge | Positive Edge | Negative Edge | Negative Edge |
| Voltage - Supply | 3 V ~ 18 V | 3 V ~ 18 V | 3 V ~ 18 V | 3 V ~ 18 V | 3 V ~ 18 V | 3 V ~ 18 V | 3 V ~ 18 V |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 16-SOIC (0.209", 5.30mm Width) | 16-SOIC (0.209", 5.30mm Width) | 16-SOIC (0.209", 5.30mm Width) | 16-SOIC (0.209", 5.30mm Width) | 16-SOIC (0.209", 5.30mm Width) | 14-SOIC (0.209", 5.30mm Width) | 16-SOIC (0.209", 5.30mm Width) |
| Supplier Device Package | 16-SO | 16-SO | 16-SO | 16-SO | 16-SO | 14-SO | 16-SO |
