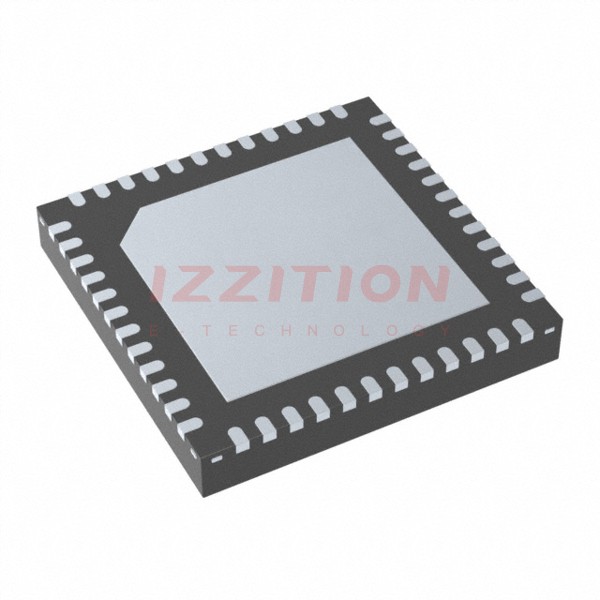

| Part Number | CC2652P1FRGZR | CC2652R1FRGZR |
|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments |
| Product Status | Active | Active |
| Type | TxRx + MCU | TxRx + MCU |
| RF Family/Standard | 802.15.4, Bluetooth | 802.15.4, Bluetooth |
| Protocol | Bluetooth v5.0, Thread, Zigbee® | Bluetooth v5.2, Thread, Zigbee® |
| Modulation | DSSS, FSK, O-QPSK | DSSS, O-QPSK |
| Frequency | 2.4GHz ~ 2.48GHz | 2.4GHz ~ 2.48GHz |
| Data Rate (Max) | 2Mbps | 2Mbps |
| Power - Output | 19.5dBm | 5dBm |
| Sensitivity | -105dBm | -105dBm |
| Memory Size | 352kB Flash, 80kB RAM | 352kB Flash, 80kB RAM |
| Serial Interfaces | ADC, GPIO, I²C, I²S, JTAG, SPI, UART | ADC, GPIO, I²C, I²S, JTAG, SPI, UART |
| GPIO | 26 | 31 |
| Voltage - Supply | 1.8V ~ 3.8V | 1.8V ~ 3.8V |
| Current - Receiving | 6.9mA | 6.9mA |
| Current - Transmitting | 7.3mA ~ 85mA | 7.3mA ~ 9.6mA |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 48-VFQFN Exposed Pad | 48-VFQFN Exposed Pad |
| Supplier Device Package | 48-VQFN (7x7) | 48-VQFN (7x7) |
