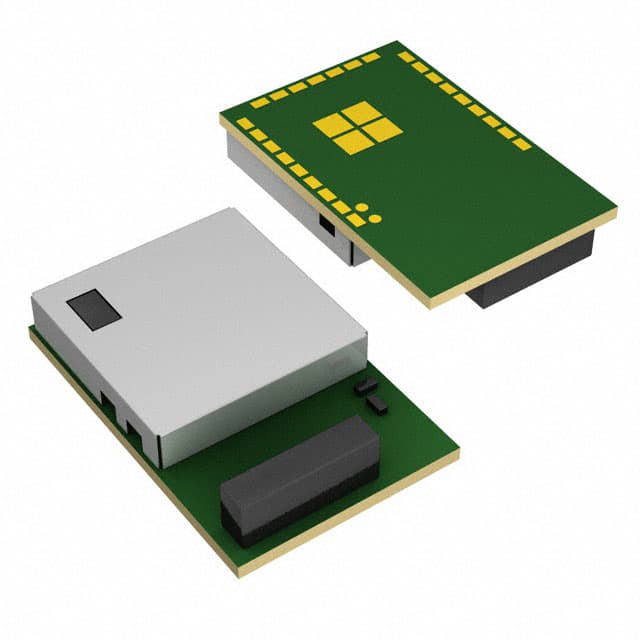

| Part Number | CC2650MODAMOHT | CC2650MODAMOHR |
|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments |
| Product Status | Obsolete | Active |
| RF Family/Standard | Bluetooth | 802.15.4, Bluetooth |
| Protocol | Bluetooth v4.2 | Bluetooth v5.1, Zigbee® |
| Modulation | - | DSSS, O-QPSK, GFSK |
| Frequency | 2.4GHz | 2.4GHz |
| Data Rate | 1Mbps | 1Mbps |
| Power - Output | 5dBm | 5dBm |
| Sensitivity | -100dBm | -100dBm |
| Serial Interfaces | I²C, I²S, SPI, UART | I²C, I²S, SPI, UART |
| Antenna Type | Integrated, Chip | Integrated, Chip |
| Utilized IC / Part | CC2650 | CC2650 |
| Memory Size | 128kB Flash, 28kB SRAM | 128kB Flash, 8kB SRAM |
| Voltage - Supply | 1.8V ~ 3.8V | 1.8V ~ 3.8V |
| Current - Receiving | 6.2mA | 6.2mA |
| Current - Transmitting | 6.8mA ~ 9.4mA | 6.8mA ~ 9.4mA |
| Mounting Type | Surface Mount | Surface Mount |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C |
| Package / Case | 29-SMD Module, Exposed Pad | 29-SMD Module, Exposed Pad |
