| Part Number | CC1352P1F3RGZT | CC1352R1F3RGZT | CC1352P1F3RGZR |
|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Active |
| Type | TxRx + MCU | TxRx + MCU | TxRx + MCU |
| RF Family/Standard | 802.15.4, Bluetooth | 802.15.4, Bluetooth | 802.15.4, Bluetooth |
| Protocol | 6LoWPAN, Bluetooth v5.1, Thread, Zigbee® | Bluetooth v5.1, Thread, Zigbee® | 6LoWPAN, Bluetooth v5.1, Thread, Zigbee® |
| Modulation | DSSS, GFSK, O-QPSK | 2FSK, 4FSK, GFSK | DSSS, GFSK, O-QPSK |
| Frequency | 287MHz ~ 351MHz, 359MHz ~ 527MHz, 861MHz ~ 1.054GHz, 1.076GHz ~ 1.315GHz, 2.36GHz ~ 2.5GHz | ||
| Data Rate (Max) | 2Mbps | 250kbps | 2Mbps |
| Power - Output | 20dBm | 14dBm | 20dBm |
| Sensitivity | -122dBm | -121dBm | -122dBm |
| Memory Size | 352kB Flash, 80kB RAM | 352kB Flash, 80kB RAM | 352kB Flash, 80kB SRAM |
| Serial Interfaces | ADC, GPIO, I²C, I²S, SPI, UART | I²C, I²S, SPI, UART | ADC, GPIO, I²C, I²S, SPI, UART |
| GPIO | 26 | 28 | 26 |
| Voltage - Supply | 1.8V ~ 3.8V | 1.8V ~ 3.8V | 1.8V ~ 3.8V |
| Current - Receiving | 5.8mA | 5.8mA ~ 6.9mA | 5.8mA |
| Current - Transmitting | 63mA ~ 79mA | 7.1mA ~ 24.9mA | 63mA ~ 79mA |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |

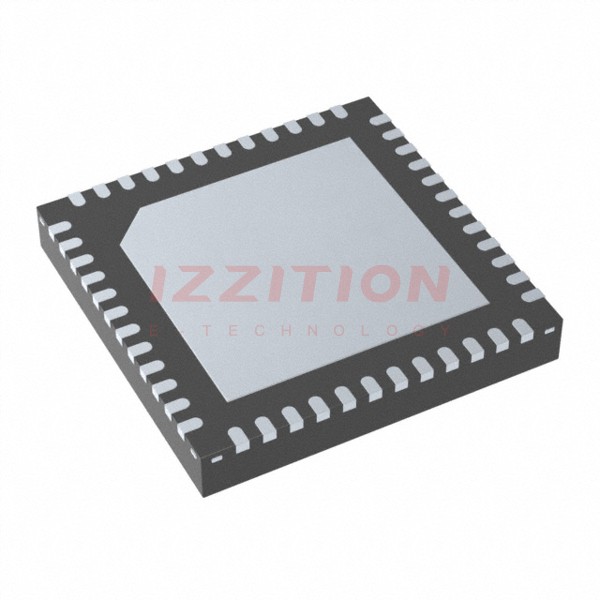

| Package / Case | 48-VFQFN Exposed Pad | 48-VFQFN Exposed Pad | 48-VFQFN Exposed Pad |
| Supplier Device Package | 48-VQFN (7x7) | 48-VQFN (7x7) | 48-VQFN (7x7) |
