Please send RFQ , we will respond immediately.

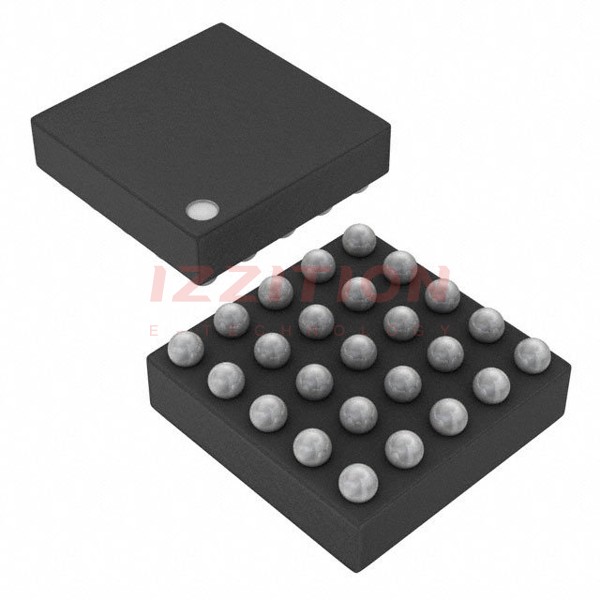

| Part Number | BQ25125YFPT | BQ25155YFPT | BQ25120YFPT | BQ25121YFPT | BQ25122YFPT | BQ25125YFPR |
|---|---|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Not For New Designs | Not For New Designs | Active | Active |
| Battery Chemistry | Multi-Chemistry | Multi-Chemistry | Lithium Ion/Polymer | Lithium Ion | Lithium Ion | Multi-Chemistry |
| Number of Cells | 1 | 1 | 1 | 1 | 1 | 1 |
| Current - Charging | Constant | Constant - Programmable | Constant - Programmable | Constant - Programmable | Constant | Constant |
| Programmable Features | Current, Voltage | Current, Voltage | Current | Current | Current, Voltage | Current, Voltage |
| Fault Protection | Over Voltage, Short Circuit | Over Current, Over Temperature, Over Voltage, Short Circuit | Over Temperature, Over Voltage, Short Circuit | Over Voltage | Over Temperature, Over Voltage, Short Circuit | Over Voltage, Short Circuit |
| Charge Current - Max | 300mA | 500mA | 300mA | 300mA | 300mA | 300mA |
| Battery Pack Voltage | 5.5V (Max) | 4.6V (Max) | 4.2V | 4.2V | 4.65V (Max) | 5.5V (Max) |
| Voltage - Supply (Max) | 20V | 5.25V | 5.5V | 5.5V | 5.5V | 20V |
| Interface | I²C | I²C | I²C | I²C | I²C | I²C |
| Operating Temperature | -40°C ~ 85°C (TJ) | -40°C ~ 85°C (TA) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 85°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 25-XFBGA, DSBGA | 20-XFBGA, DSBGA | 25-XFBGA, DSBGA | 25-XFBGA, DSBGA | 25-XFBGA, DSBGA | 25-XFBGA, DSBGA |
| Supplier Device Package | 25-DSBGA | 20-DSBGA | 25-DSBGA | 25-DSBGA | 25-DSBGA | 25-DSBGA |
