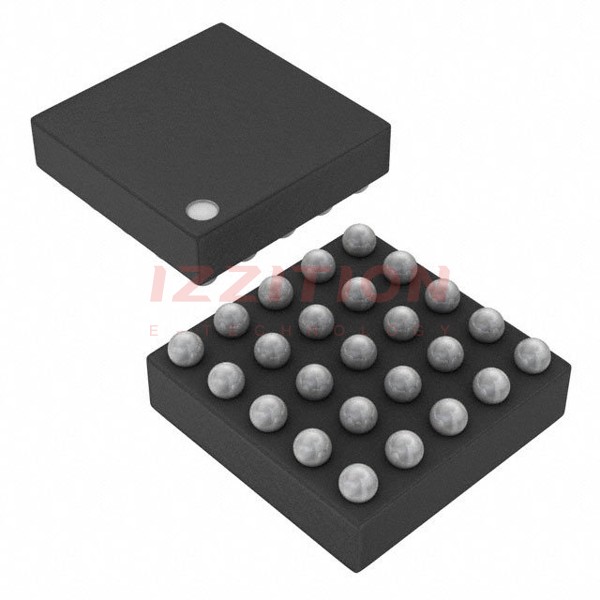

| Part Number | BQ25121YFPR | BQ25121YFPT | BQ25125YFPR | BQ25122YFPR | BQ25101YFPR | BQ25120YFPR | BQ25121AYFPR |
|---|---|---|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Not For New Designs | Not For New Designs | Active | Active | Active | Not For New Designs | Active |
| Battery Chemistry | Lithium Ion | Lithium Ion | Multi-Chemistry | Lithium Ion | Lithium Ion/Polymer | Lithium Ion/Polymer | Multi-Chemistry |
| Number of Cells | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Current - Charging | Constant - Programmable | Constant - Programmable | Constant | Constant | Constant - Programmable | Constant - Programmable | Constant |
| Programmable Features | Current | Current | Current, Voltage | Current, Voltage | Current | Current | Current, Timer, Voltage |
| Fault Protection | Over Voltage | Over Voltage | Over Voltage, Short Circuit | Over Temperature, Over Voltage, Short Circuit | Over Temperature, Over Voltage, Short Circuit | Over Temperature, Over Voltage, Short Circuit | Over Current, Over Voltage, Short Circuit |
| Charge Current - Max | 300mA | 300mA | 300mA | 300mA | 250mA | 300mA | 300mA |
| Battery Pack Voltage | 4.2V | 4.2V | 5.5V (Max) | 4.65V (Max) | 4.2V | 4.2V | 4.65V |
| Voltage - Supply (Max) | 5.5V | 5.5V | 20V | 5.5V | 6.45V | 5.5V | 5.5V |
| Interface | I²C | I²C | I²C | I²C | - | I²C | I²C |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 85°C (TJ) | -40°C ~ 125°C (TJ) | 0°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 85°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 25-XFBGA, DSBGA | 25-XFBGA, DSBGA | 25-XFBGA, DSBGA | 25-XFBGA, DSBGA | 6-XFBGA, DSBGA | 25-XFBGA, DSBGA | 25-XFBGA, DSBGA |
| Supplier Device Package | 25-DSBGA | 25-DSBGA | 25-DSBGA | 25-DSBGA | 6-DSBGA | 25-DSBGA | 25-DSBGA |
