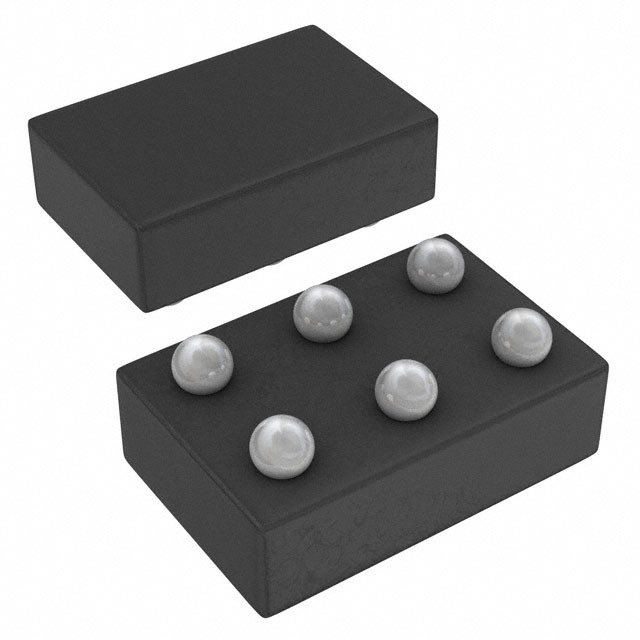

| Part Number | BQ25100YFPT | BQ25120YFPT | BQ25101YFPT | BQ25150YFPT | BQ25100AYFPT | BQ25100BYFPT | BQ25100HYFPT | BQ25100YFPR |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Not For New Designs | Active | Active | Active | Active | Active | Active |
| Battery Chemistry | Lithium Ion/Polymer | Lithium Ion/Polymer | Lithium Ion/Polymer | Lithium Ion/Polymer | Lithium Ion/Polymer | Lithium Ion/Polymer | Lithium Ion/Polymer | Lithium Ion/Polymer |
| Number of Cells | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Current - Charging | Constant - Programmable | Constant - Programmable | Constant - Programmable | Constant - Programmable | Constant - Programmable | Constant - Programmable | Constant - Programmable | Constant - Programmable |
| Programmable Features | Current | Current | Current | Current | Current | Current | Current | Current |
| Fault Protection | Over Temperature, Over Voltage, Short Circuit | Over Temperature, Over Voltage, Short Circuit | Over Temperature, Over Voltage, Short Circuit | Over Current, Over Temperature, Over Voltage, Reverse Current, Short Circuit | Over Temperature, Over Voltage, Short Circuit | Over Temperature, Over Voltage, Short Circuit | Over Temperature, Over Voltage, Short Circuit | Over Temperature, Over Voltage, Short Circuit |
| Charge Current - Max | 250mA | 300mA | 250mA | 500mA | 250mA | 250mA | 250mA | 250mA |
| Battery Pack Voltage | 4.2V | 4.2V | 4.2V | 4.2V | 4.3V | 4.284V | 4.35V | 4.2V |
| Voltage - Supply (Max) | 6.45V | 5.5V | 6.45V | 3.6V | 6.45V | 6.45V | 6.45V | 6.45V |
| Interface | - | I²C | - | I²C | - | USB | - | - |
| Operating Temperature | 0°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | 0°C ~ 125°C (TJ) | -40°C ~ 85°C (TA) | 0°C ~ 125°C (TJ) | -5°C ~ 125°C (TJ) | 0°C ~ 125°C (TJ) | 0°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 6-XFBGA, DSBGA | 25-XFBGA, DSBGA | 6-XFBGA, DSBGA | 20-XFBGA, DSBGA | 6-XFBGA, DSBGA | 6-XFBGA, DSBGA | 6-XFBGA, DSBGA | 6-XFBGA, DSBGA |
| Supplier Device Package | 6-DSBGA | 25-DSBGA | 6-DSBGA | 20-DSBGA | 6-DSBGA | 6-DSBGA | 6-DSBGA | 6-DSBGA |
