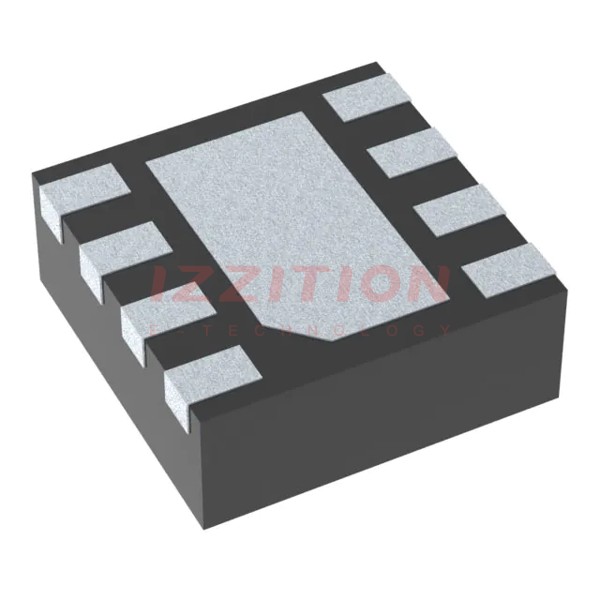

| Part Number | BQ24314DSGT | BQ24316DSGT | BQ24315DSGT | BQ24314DSJT | BQ24304DSGT | BQ24311DSGT | BQ24312DSGT | BQ24313DSGT | BQ24314ADSGT | BQ24314CDSGT | BQ24314DSGR |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Active | Obsolete | Obsolete | Active | Active | Active | Active | Active | Active |
| Function | Battery Protection | Battery Protection | Battery Protection | Battery Protection | Battery Protection | Battery Protection | Battery Protection | Battery Protection | Battery Protection | Battery Protection | Battery Protection |
| Battery Chemistry | Lithium Ion | Lithium Ion | Lithium Ion | Lithium Ion | Lithium Ion | Lithium Ion | Lithium Ion | Lithium Ion | Lithium Ion | Lithium Ion | Lithium Ion |
| Number of Cells | - | - | - | - | - | - | - | - | - | - | - |
| Fault Protection | Over Current, Over Temperature, Over/Under Voltage | Over Current, Over Temperature, Over/Under Voltage | Over Current, Over Temperature, Over/Under Voltage | Over Current, Over Temperature, Over/Under Voltage | Over Current, Over Temperature, Over/Under Voltage | Over Current, Over Temperature, Over/Under Voltage | Over Current, Over Temperature, Over/Under Voltage | Over Current, Over Temperature, Over/Under Voltage | Over Current, Over Temperature, Over/Under Voltage | Over Current, Over Temperature, Over/Under Voltage | Over Current, Over Temperature, Over/Under Voltage |
| Interface | - | - | - | - | - | - | - | - | - | - | - |
| Operating Temperature | 0°C ~ 125°C (TJ) | 0°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | 0°C ~ 125°C (TJ) | 0°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | 0°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 8-WFDFN Exposed Pad | 8-WFDFN Exposed Pad | 8-WFDFN Exposed Pad | 12-VFDFN Exposed Pad | 8-WFDFN Exposed Pad | 8-WFDFN Exposed Pad | 8-WFDFN Exposed Pad | 8-WFDFN Exposed Pad | 8-WFDFN Exposed Pad | 8-WFDFN Exposed Pad | 8-WFDFN Exposed Pad |
| Supplier Device Package | 8-WSON (2x2) | 8-WSON (2x2) | 8-WSON (2x2) | 12-VSON (4x3) | 8-WSON (2x2) | 8-WSON (2x2) | 8-WSON (2x2) | 8-WSON (2x2) | 8-WSON (2x2) | 8-WSON (2x2) | 8-WSON (2x2) |
