| Part Number | BQ24163YFFR | BQ24163YFFT | BQ24168YFFR | BQ24165YFFR | BQ24166YFFR | BQ24167YFFR | BQ24153YFFR | BQ24160YFFR | BQ24161YFFR | BQ24162YFFR |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Battery Chemistry | Lithium Ion/Polymer | Lithium Ion/Polymer | Lithium Ion/Polymer | Lithium Ion | Lithium Ion | Lithium Ion | Lithium Ion/Polymer | Lithium Ion/Polymer | Lithium Ion/Polymer | Lithium Ion |
| Number of Cells | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Current - Charging | Constant - Programmable | Constant - Programmable | Constant - Programmable | Constant - Programmable | Constant - Programmable | Constant - Programmable | Constant - Programmable | Constant - Programmable | Constant - Programmable | Constant - Programmable |
| Programmable Features | - | - | - | - | - | - | Current, Timer | - | - | Current, Voltage |
| Fault Protection | Over Temperature, Over Voltage | Over Temperature, Over Voltage | Over Temperature, Over Voltage | Over Temperature, Short Circuit | Over Temperature, Short Circuit | Over Temperature, Short Circuit | Over Temperature, Over Voltage | Over Temperature, Over Voltage | Over Temperature, Over Voltage | Over Temperature, Over Voltage, Short Circuit |
| Charge Current - Max | 2.5A | 2.5A | 2.5A | 2.5A | 2.5A | 2.5A | 1.25A | 2.5A | 2.5A | - |
| Battery Pack Voltage | 3.4V | 3.4V | 3.7V | 3.7V | 3.7V | 3.7V | 4.44V (Max) | 3.7V | 3.7V | - |
| Voltage - Supply (Max) | 10V | 10V | 6V | 10V | 10V | 10V | 6V | 10V | 10V | - |
| Interface | I²C | I²C | I²C | USB | USB | USB | I²C | I²C | I²C | I²C |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -30°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

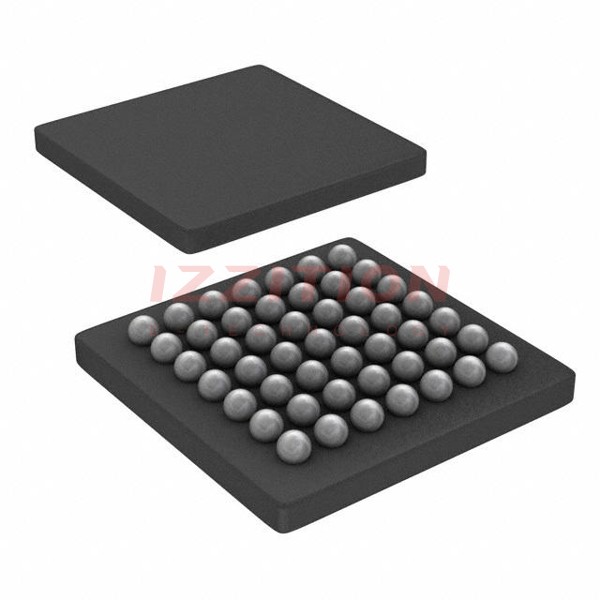

| Package / Case | 49-UFBGA, DSBGA | 49-UFBGA, DSBGA | 49-UFBGA, DSBGA | 49-UFBGA, DSBGA | 49-UFBGA, DSBGA | 49-UFBGA, DSBGA | 20-UFBGA, DSBGA | 49-UFBGA, DSBGA | 49-UFBGA, DSBGA | 49-UFBGA, DSBGA |
| Supplier Device Package | 49-DSBGA (2.8x2.8) | 49-DSBGA (2.8x2.8) | 49-DSBGA (2.8x2.8) | 49-DSBGA (2.8x2.8) | 49-DSBGA (2.8x2.8) | 49-DSBGA (2.8x2.8) | 20-DSBGA | 49-DSBGA (2.8x2.8) | 49-DSBGA (2.8x2.8) | 49-DSBGA (2.8x2.8) |
