BQ24125RHLR
  • Share:

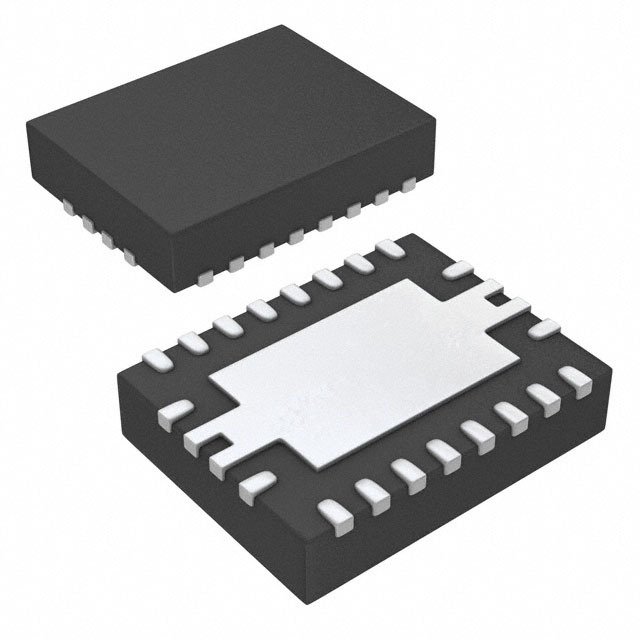

Texas Instruments BQ24125RHLR

Manufacturer No:
BQ24125RHLR
Manufacturer:
Texas Instruments
Package:
Tape & Reel (TR)
Datasheet:
BQ24125RHLR Datasheet
ECAD Model:
-
Description:
IC BATT CHG LI-ION 1-3CEL 20VQFN
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Battery Chemistry:Lithium Ion/Polymer
Number of Cells:1 ~ 3
Current - Charging:Constant - Programmable
Programmable Features:Current, Timer
Fault Protection:Over Temperature
Charge Current - Max:2A
Battery Pack Voltage:8.4V
Voltage - Supply (Max):16V
Interface:-
Operating Temperature:-40°C ~ 85°C (TA)
Mounting Type:Surface Mount
Package / Case:20-VFQFN Exposed Pad
Supplier Device Package:20-VQFN (3.5x4.5)
0 Remaining View Similar

In Stock

$7.15
50

Please send RFQ , we will respond immediately.

Similar Products

Part Number BQ24125RHLR BQ24125RHLT   BQ24105RHLR   BQ24115RHLR   BQ24120RHLR   BQ24123RHLR
Manufacturer Texas Instruments Texas Instruments Texas Instruments Texas Instruments Texas Instruments Texas Instruments
Product Status Active Active Active Active Active Active
Battery Chemistry Lithium Ion/Polymer Lithium Ion/Polymer Multi-Chemistry Multi-Chemistry Lithium Ion/Polymer Lithium Ion/Polymer
Number of Cells 1 ~ 3 1 ~ 3 1 ~ 3 1 ~ 3 1 1 ~ 3
Current - Charging Constant - Programmable Constant - Programmable Constant - Programmable Constant - Programmable Constant - Programmable Constant - Programmable
Programmable Features Current, Timer Current, Timer Current, Timer Current, Timer Current, Timer Current, Timer
Fault Protection Over Temperature Over Temperature Over Temperature, Over Voltage Over Temperature, Over Voltage Over Temperature Over Temperature
Charge Current - Max 2A 2A 2A 2A 2A 2A
Battery Pack Voltage 8.4V 8.4V 15.5V 15.5V 4.2V 8.4V
Voltage - Supply (Max) 16V 16V 16V 16V 16V 16V
Interface - - - - - -
Operating Temperature -40°C ~ 85°C (TA) -40°C ~ 85°C (TA) -40°C ~ 85°C (TA) -40°C ~ 85°C (TA) -40°C ~ 85°C (TA) -40°C ~ 85°C (TA)
Mounting Type Surface Mount Surface Mount Surface Mount Surface Mount Surface Mount Surface Mount
Package / Case 20-VFQFN Exposed Pad 20-VFQFN Exposed Pad 20-VFQFN Exposed Pad 20-VFQFN Exposed Pad 20-VFQFN Exposed Pad 20-VFQFN Exposed Pad
Supplier Device Package 20-VQFN (3.5x4.5) 20-VQFN (3.5x4.5) 20-VQFN (3.5x4.5) 20-VQFN (3.5x4.5) 20-VQFN (3.5x4.5) 20-VQFN (3.5x4.5)
