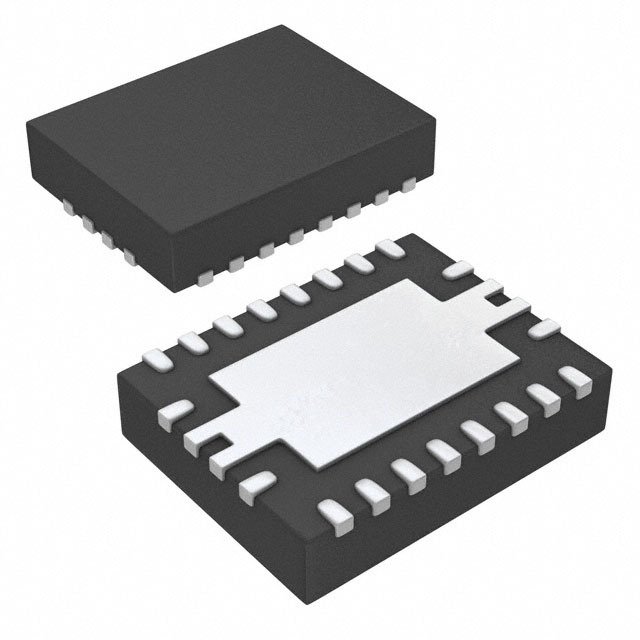

| Part Number | BQ24115RHLR | BQ24125RHLR | BQ24105RHLR | BQ24113RHLR |
|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Active | Active |
| Battery Chemistry | Multi-Chemistry | Lithium Ion/Polymer | Multi-Chemistry | Lithium Ion/Polymer |
| Number of Cells | 1 ~ 3 | 1 ~ 3 | 1 ~ 3 | 1 ~ 2 |
| Current - Charging | Constant - Programmable | Constant - Programmable | Constant - Programmable | Constant - Programmable |
| Programmable Features | Current, Timer | Current, Timer | Current, Timer | Current, Timer |
| Fault Protection | Over Temperature, Over Voltage | Over Temperature | Over Temperature, Over Voltage | Over Temperature, Over Voltage |
| Charge Current - Max | 2A | 2A | 2A | 2A |
| Battery Pack Voltage | 15.5V | 8.4V | 15.5V | 8.4V |
| Voltage - Supply (Max) | 16V | 16V | 16V | 16V |
| Interface | - | - | - | - |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 20-VFQFN Exposed Pad | 20-VFQFN Exposed Pad | 20-VFQFN Exposed Pad | 20-VFQFN Exposed Pad |
| Supplier Device Package | 20-VQFN (3.5x4.5) | 20-VQFN (3.5x4.5) | 20-VQFN (3.5x4.5) | 20-VQFN (3.5x4.5) |
