| Part Number | AWR6843AQGABLQ1 | AWR6843AQGABLRQ1 | AWR6843ABGABLQ1 |
|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Active |
| Type | TxRx + MCU | TxRx + MCU | TxRx + MCU |
| RF Family/Standard | - | - | - |
| Protocol | - | - | - |
| Modulation | - | - | - |
| Frequency | 60GHz ~ 64GHz | 60GHz ~ 64GHz | 60GHz ~ 64GHz |
| Data Rate (Max) | 900Mbps | 900Mbps | 900Mbps |
| Power - Output | 12dBm | 12dBm | 12dBm |
| Sensitivity | - | - | - |
| Memory Size | - | - | - |
| Serial Interfaces | ADC, GPIO, I²C, SPI, UART | ADC, GPIO, I²C, SPI, UART | ADC, GPIO, I²C, SPI, UART |
| GPIO | 48 | 48 | 48 |
| Voltage - Supply | 1.8V, 3.3V | 1.8V, 3.3V | 1.71V ~ 1.89V, 3.15V ~ 3.45V |
| Current - Receiving | - | - | - |
| Current - Transmitting | - | - | - |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |

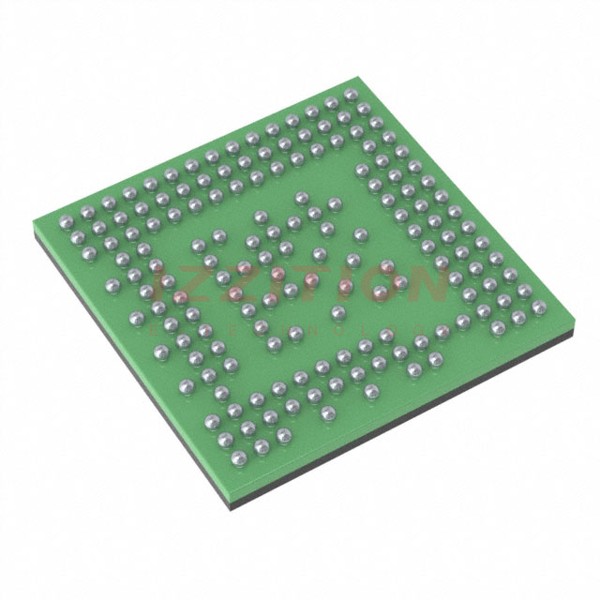

| Package / Case | 161-TFBGA, FCCSP | 161-TFBGA, FCCSP | 161-TFBGA, FCCSP |
| Supplier Device Package | 161-FC/CSP (10.4x10.4) | 161-FC/CSP (10.4x10.4) | 161-FC/CSP (10.4x10.4) |
