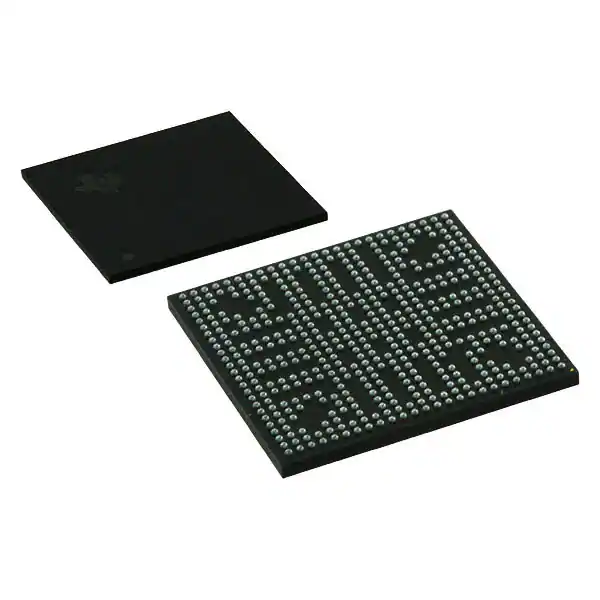

| Part Number | AM4377BZDNA80 | AM4378BZDNA80 | AM4377BZDND80 | AM4379BZDNA80 | AM4372BZDNA80 | AM4376BZDNA80 |
|---|---|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Active | Active | Active | Active |
| Core Processor | ARM® Cortex®-A9 | ARM® Cortex®-A9 | ARM® Cortex®-A9 | ARM® Cortex®-A9 | ARM® Cortex®-A9 | ARM® Cortex®-A9 |
| Number of Cores/Bus Width | 1 Core, 32-Bit | 1 Core, 32-Bit | 1 Core, 32-Bit | 1 Core, 32-Bit | 1 Core, 32-Bit | 1 Core, 32-Bit |
| Speed | 800MHz | 800MHz | 800MHz | 800MHz | 800MHz | 800MHz |
| Co-Processors/DSP | Multimedia; NEON™ SIMD | Multimedia; NEON™ SIMD | Multimedia; NEON™ SIMD | Multimedia; NEON™ SIMD | Multimedia; NEON™ SIMD | Multimedia; NEON™ SIMD |
| RAM Controllers | LPDDR2, DDR3, DDR3L | LPDDR2, DDR3, DDR3L | LPDDR2, DDR3, DDR3L | LPDDR2, DDR3, DDR3L | LPDDR2, DDR3, DDR3L | LPDDR2, DDR3, DDR3L |
| Graphics Acceleration | No | Yes | No | Yes | No | No |
| Display & Interface Controllers | TSC, WXGA | TSC, WXGA | TSC, WXGA | TSC, WXGA | TSC, WXGA | TSC, WXGA |
| Ethernet | 10/100/1000Mbps (2) | 10/100/1000Mbps (2) | 10/100/1000Mbps (2) | 10/100/1000Mbps (2) | 10/100/1000Mbps (2) | 10/100/1000Mbps (2) |
| SATA | - | - | - | - | - | - |
| USB | USB 2.0 + PHY (2) | USB 2.0 + PHY (2) | USB 2.0 + PHY (2) | USB 2.0 + PHY (2) | USB 2.0 + PHY (2) | USB 2.0 + PHY (2) |
| Voltage - I/O | 1.8V, 3.3V | 1.8V, 3.3V | 1.8V, 3.3V | 1.8V, 3.3V | 1.8V, 3.3V | 1.8V, 3.3V |
| Operating Temperature | -40°C ~ 105°C (TJ) | -40°C ~ 105°C (TJ) | -40°C ~ 90°C (TJ) | -40°C ~ 105°C (TJ) | -40°C ~ 105°C (TJ) | -40°C ~ 105°C (TJ) |
| Security Features | Crypto Accelerator | Crypto Accelerator | Crypto Accelerator | Crypto Accelerator | Crypto Accelerator | Crypto Accelerator |
| Package / Case | 491-LFBGA | 491-LFBGA | 491-LFBGA | 491-LFBGA | 491-LFBGA | 491-LFBGA |
| Supplier Device Package | 491-NFBGA (17x17) | 491-NFBGA (17x17) | 491-NFBGA (17x17) | 491-NFBGA (17x17) | 491-NFBGA (17x17) | 491-NFBGA (17x17) |
