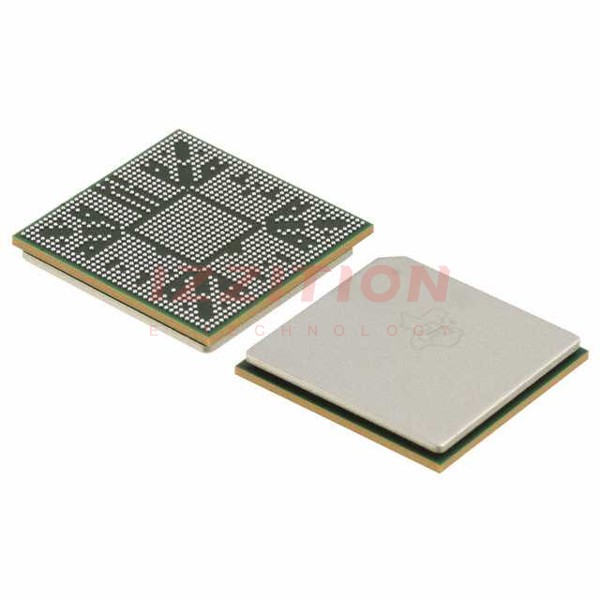

| Part Number | AM3892CCYG120 | AM3894CCYG120 | AM3892BCYG120 |
|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Active | Active | Obsolete |
| Core Processor | ARM® Cortex®-A8 | ARM® Cortex®-A8 | ARM® Cortex®-A8 |
| Number of Cores/Bus Width | 1 Core, 32-Bit | 1 Core, 32-Bit | 1 Core, 32-Bit |
| Speed | 1.2GHz | 1.2GHz | 1.2GHz |
| Co-Processors/DSP | Multimedia; NEON™ SIMD | Multimedia; NEON™ SIMD | Multimedia; NEON™ SIMD |
| RAM Controllers | DDR2, DDR3 | DDR2, DDR3 | DDR2, DDR3 |
| Graphics Acceleration | Yes | Yes | Yes |
| Display & Interface Controllers | HDMI, HDVPSS | HDMI, HDVPSS | HDMI, HDVPSS |
| Ethernet | 10/100/1000Mbps (2) | 10/100/1000Mbps (2) | 10/100/1000Mbps (2) |
| SATA | SATA 3Gbps (1) | SATA 3Gbps (1) | SATA 3Gbps (1) |
| USB | USB 2.0 + PHY (2) | USB 2.0 + PHY (2) | USB 2.0 + PHY (2) |
| Voltage - I/O | 1.8V, 3.3V | 1.8V, 3.3V | 1.8V, 3.3V |
| Operating Temperature | 0°C ~ 95°C (TJ) | 0°C ~ 95°C (TJ) | 0°C ~ 95°C (TJ) |
| Security Features | - | - | - |
| Package / Case | 1031-BFBGA, FCBGA | 1031-BFBGA, FCBGA | 1031-BFBGA, FCBGA |
| Supplier Device Package | 1031-FCBGA (25x25) | 1031-FCBGA (25x25) | 1031-FCBGA (25x25) |
