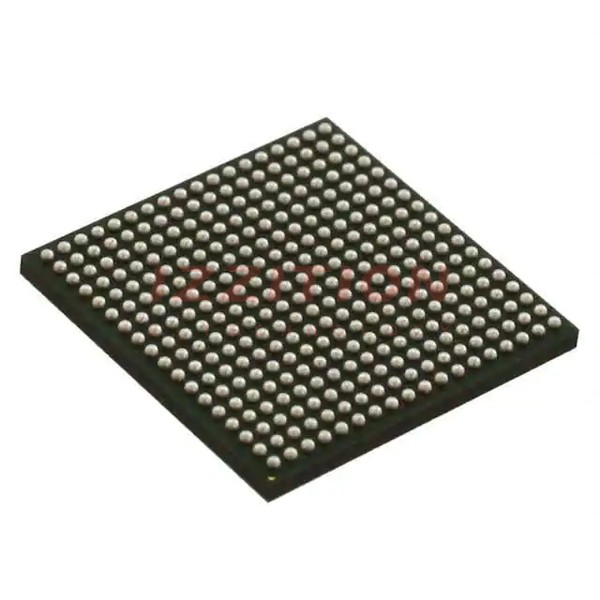

| Part Number | AM3356BZCZD80 | AM3359BZCZD80 | AM3352BZCZD80 | AM3354BZCZD80 | AM3356BZCZ80 | AM3356BZCZA80 | AM3356BZCZD30 | AM3356BZCZD60 |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Discontinued at Digi-Key | Discontinued at Digi-Key | Active | Active | Active | Active | Active | Active |
| Core Processor | ARM® Cortex®-A8 | ARM® Cortex®-A8 | ARM® Cortex®-A8 | ARM® Cortex®-A8 | ARM® Cortex®-A8 | ARM® Cortex®-A8 | ARM® Cortex®-A8 | ARM® Cortex®-A8 |
| Number of Cores/Bus Width | 1 Core, 32-Bit | 1 Core, 32-Bit | 1 Core, 32-Bit | 1 Core, 32-Bit | 1 Core, 32-Bit | 1 Core, 32-Bit | 1 Core, 32-Bit | 1 Core, 32-Bit |
| Speed | 800MHz | 800MHz | 800MHz | 800MHz | 800MHz | 800MHz | 300MHz | 600MHz |
| Co-Processors/DSP | Multimedia; NEON™ SIMD | Multimedia; NEON™ SIMD | Multimedia; NEON™ SIMD | Multimedia; NEON™ SIMD | Multimedia; NEON™ SIMD | Multimedia; NEON™ SIMD | Multimedia; NEON™ SIMD | Multimedia; NEON™ SIMD |
| RAM Controllers | LPDDR, DDR2, DDR3, DDR3L | LPDDR, DDR2, DDR3, DDR3L | LPDDR, DDR2, DDR3, DDR3L | LPDDR, DDR2, DDR3, DDR3L | LPDDR, DDR2, DDR3, DDR3L | LPDDR, DDR2, DDR3, DDR3L | LPDDR, DDR2, DDR3, DDR3L | LPDDR, DDR2, DDR3, DDR3L |
| Graphics Acceleration | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Display & Interface Controllers | LCD, Touchscreen | LCD, Touchscreen | LCD, Touchscreen | LCD, Touchscreen | LCD, Touchscreen | LCD, Touchscreen | LCD, Touchscreen | LCD, Touchscreen |
| Ethernet | 10/100/1000Mbps (2) | 10/100/1000Mbps (2) | 10/100/1000Mbps (2) | 10/100/1000Mbps (2) | 10/100/1000Mbps (2) | 10/100/1000Mbps (2) | 10/100/1000Mbps (2) | 10/100/1000Mbps (2) |
| SATA | - | - | - | - | - | - | - | - |
| USB | USB 2.0 + PHY (2) | USB 2.0 + PHY (2) | USB 2.0 + PHY (2) | USB 2.0 + PHY (2) | USB 2.0 + PHY (2) | USB 2.0 + PHY (2) | USB 2.0 + PHY (2) | USB 2.0 + PHY (2) |
| Voltage - I/O | 1.8V, 3.3V | 1.8V, 3.3V | 1.8V, 3.3V | 1.8V, 3.3V | 1.8V, 3.3V | 1.8V, 3.3V | 1.8V, 3.3V | 1.8V, 3.3V |
| Operating Temperature | -40°C ~ 90°C (TJ) | -40°C ~ 90°C (TJ) | -40°C ~ 90°C (TJ) | -40°C ~ 90°C (TJ) | 0°C ~ 90°C (TJ) | -40°C ~ 105°C (TJ) | -40°C ~ 90°C (TJ) | -40°C ~ 90°C (TJ) |
| Security Features | Cryptography, Random Number Generator | Cryptography, Random Number Generator | Cryptography, Random Number Generator | Cryptography, Random Number Generator | Cryptography, Random Number Generator | Cryptography, Random Number Generator | Cryptography, Random Number Generator | Cryptography, Random Number Generator |
| Package / Case | 324-LFBGA | 324-LFBGA | 324-LFBGA | 324-LFBGA | 324-LFBGA | 324-LFBGA | 324-LFBGA | 324-LFBGA |
| Supplier Device Package | 324-NFBGA (15x15) | 324-NFBGA (15x15) | 324-NFBGA (15x15) | 324-NFBGA (15x15) | 324-NFBGA (15x15) | 324-NFBGA (15x15) | 324-NFBGA (15x15) | 324-NFBGA (15x15) |
