Please send RFQ , we will respond immediately.

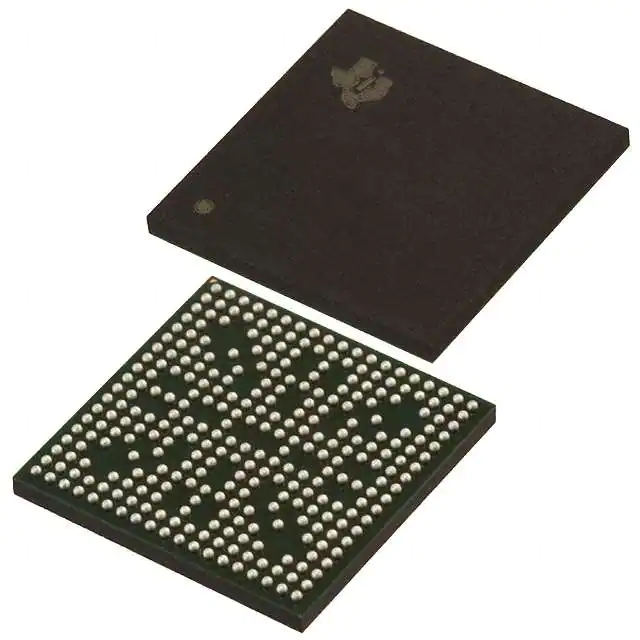

| Part Number | AM3354BZCED30 | AM3354BZCED60 | AM3354BZCZD30 | AM3352BZCED30 | AM3354BZCE30 | AM3354BZCEA30 |
|---|---|---|---|---|---|---|
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Product Status | Discontinued at Digi-Key | Active | Discontinued at Digi-Key | Active | Discontinued at Digi-Key | Discontinued at Digi-Key |
| Core Processor | ARM® Cortex®-A8 | ARM® Cortex®-A8 | ARM® Cortex®-A8 | ARM® Cortex®-A8 | ARM® Cortex®-A8 | ARM® Cortex®-A8 |
| Number of Cores/Bus Width | 1 Core, 32-Bit | 1 Core, 32-Bit | 1 Core, 32-Bit | 1 Core, 32-Bit | 1 Core, 32-Bit | 1 Core, 32-Bit |
| Speed | 300MHz | 600MHz | 300MHz | 300MHz | 300MHz | 300MHz |
| Co-Processors/DSP | Multimedia; NEON™ SIMD | Multimedia; NEON™ SIMD | Multimedia; NEON™ SIMD | Multimedia; NEON™ SIMD | Multimedia; NEON™ SIMD | Multimedia; NEON™ SIMD |
| RAM Controllers | LPDDR, DDR2, DDR3, DDR3L | LPDDR, DDR2, DDR3, DDR3L | LPDDR, DDR2, DDR3, DDR3L | LPDDR, DDR2, DDR3, DDR3L | LPDDR, DDR2, DDR3, DDR3L | LPDDR, DDR2, DDR3, DDR3L |
| Graphics Acceleration | Yes | Yes | Yes | Yes | Yes | Yes |
| Display & Interface Controllers | LCD, Touchscreen | LCD, Touchscreen | LCD, Touchscreen | LCD, Touchscreen | LCD, Touchscreen | LCD, Touchscreen |
| Ethernet | 10/100/1000Mbps (2) | 10/100/1000Mbps (2) | 10/100/1000Mbps (2) | 10/100/1000Mbps (2) | 10/100/1000Mbps (2) | 10/100/1000Mbps (2) |
| SATA | - | - | - | - | - | - |
| USB | USB 2.0 + PHY (2) | USB 2.0 + PHY (2) | USB 2.0 + PHY (2) | USB 2.0 + PHY (2) | USB 2.0 + PHY (2) | USB 2.0 + PHY (2) |
| Voltage - I/O | 1.8V, 3.3V | 1.8V, 3.3V | 1.8V, 3.3V | 1.8V, 3.3V | 1.8V, 3.3V | 1.8V, 3.3V |
| Operating Temperature | -40°C ~ 90°C (TJ) | -40°C ~ 90°C (TJ) | -40°C ~ 90°C (TJ) | -40°C ~ 90°C (TJ) | 0°C ~ 90°C (TJ) | -40°C ~ 105°C (TJ) |
| Security Features | Cryptography, Random Number Generator | Cryptography, Random Number Generator | Cryptography, Random Number Generator | Cryptography, Random Number Generator | Cryptography, Random Number Generator | Cryptography, Random Number Generator |
| Package / Case | 298-LFBGA | 298-LFBGA | 324-LFBGA | 298-LFBGA | 298-LFBGA | 298-LFBGA |
| Supplier Device Package | 298-NFBGA (13x13) | 298-NFBGA (13x13) | 324-NFBGA (15x15) | 298-NFBGA (13x13) | 298-NFBGA (13x13) | 298-NFBGA (13x13) |
